Product Name
Maxkgo 5-16S 480A High Current Power Distribution Board (PDB) with Dual BEC Output for FPV UAV
Product Description
The Maxkgo 5-16S 480A Power Distribution Board is a high-performance PDB designed for high-power FPV drones and multi-rotor UAV platforms.
Supporting 5S-16S LiPo battery input (15V-68V), it provides high current distribution with up to 480A total current capability, making it suitable for 8-16 inch FPV drones, heavy-duty multi-rotors, and custom UAV platforms.

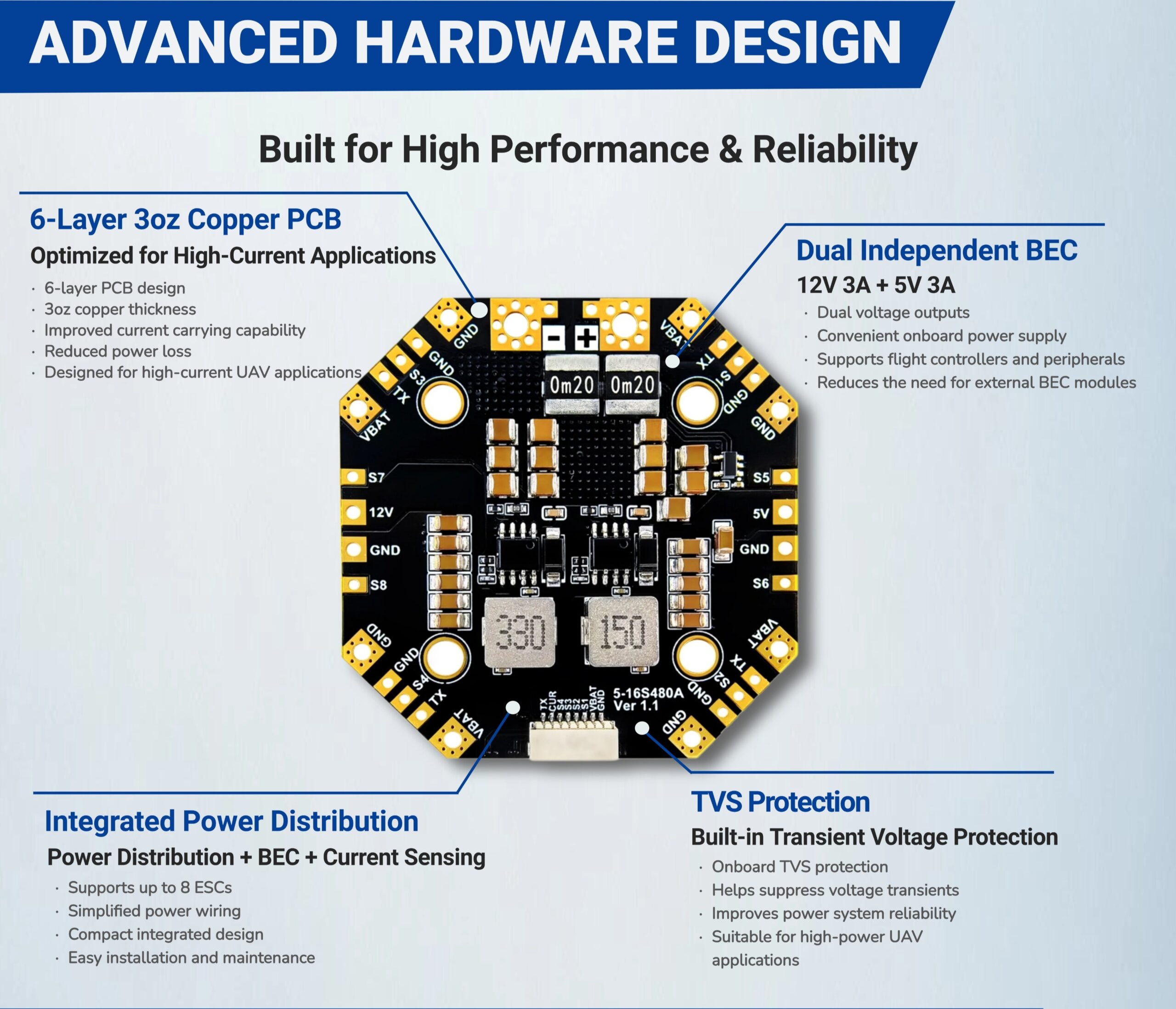

Featuring dual BEC outputs (5V/12V), support for up to 8 ESC connections, and a lightweight 6-layer copper PCB design, this PDB delivers stable power distribution with excellent efficiency and reliability.
Key Features
High Current Power Distribution
- Input voltage:
15V-68V (5S-16S LiPo) - Current capability:
120A per channel × 4 - Peak current:
130A per channel - Supports:
Up to 8 ESC connections
التطبيقات
Suitable for:
- FPV freestyle drones
- FPV racing drones
- 8-16 inch multi-rotor UAVs
- High-power drone platforms
- Custom UAV projects

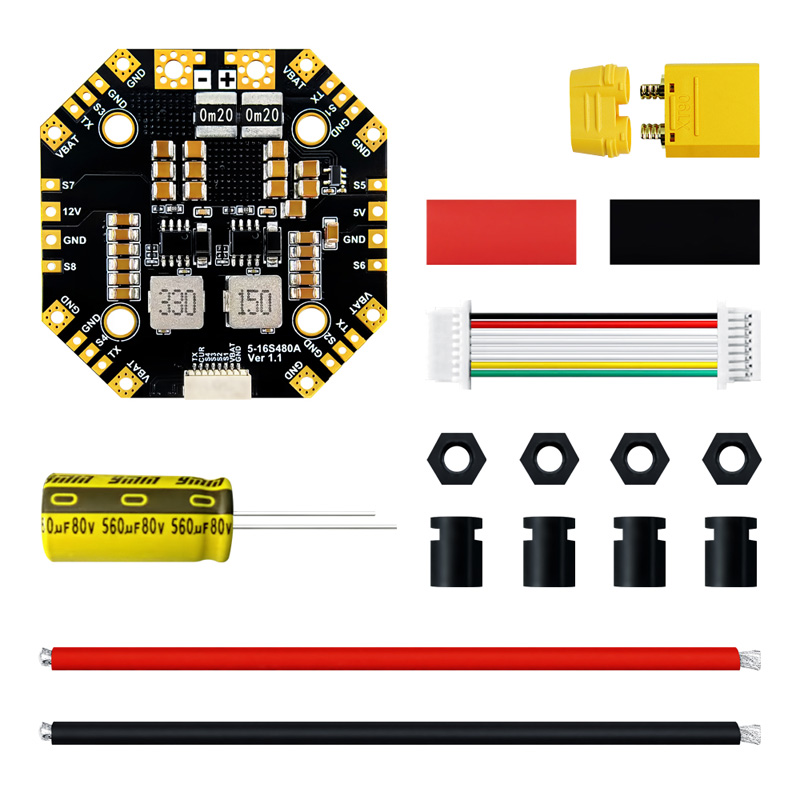

Package Includes
- 1 × 5-16S 480A Power Distribution Board
