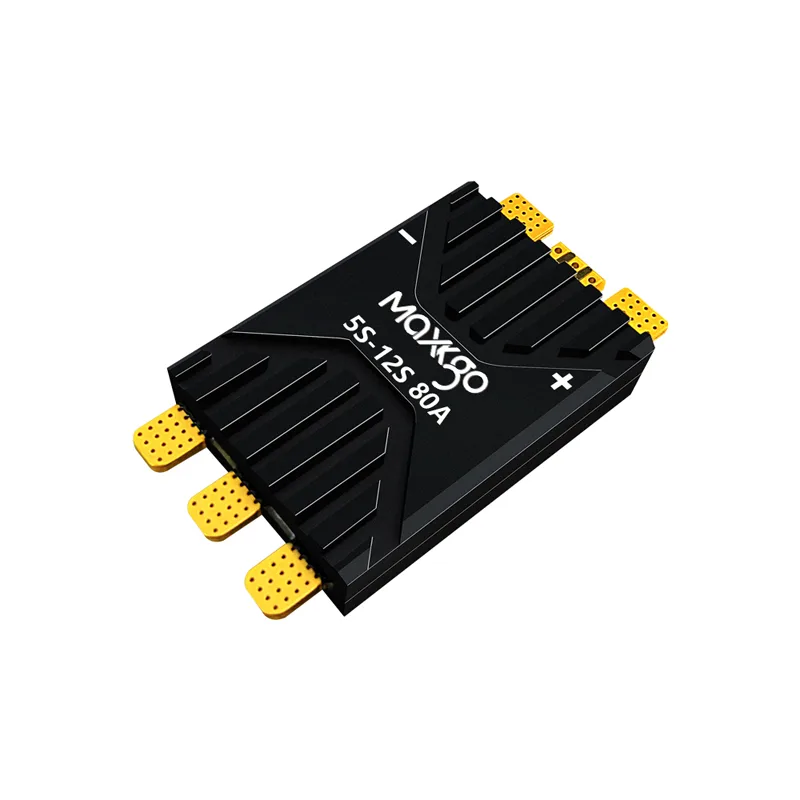

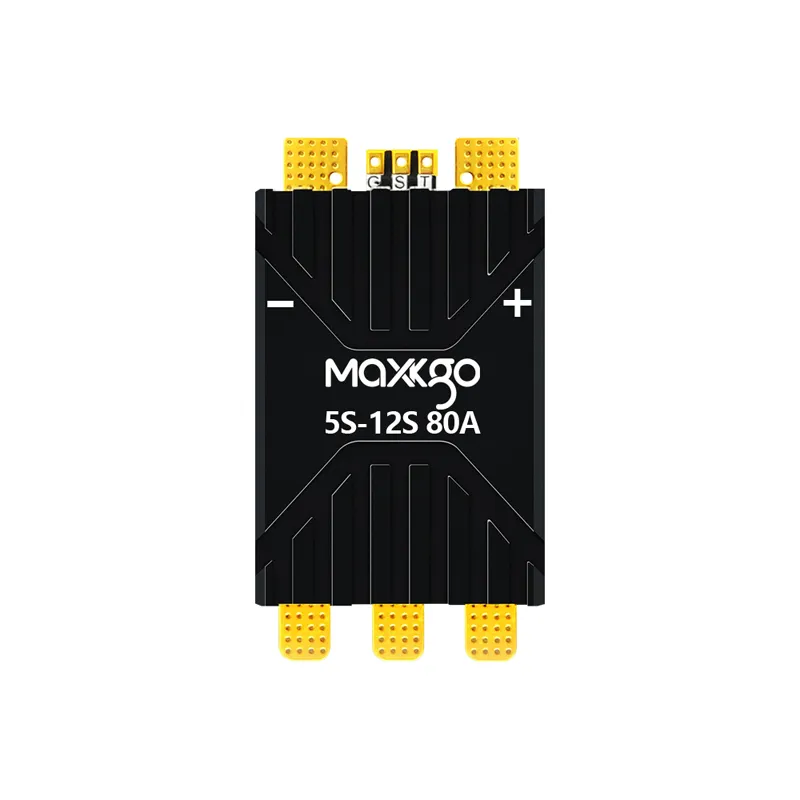

The 5-12S80A_ESC is a high-performance brushless electronic speed controller that supports an input of 5-12S lithium batteries and has a continuous current rating of 80A. It is widely applicable to FPV racing drones, multi-rotor drones, fixed-wing model aircraft, RC model cars, model boats, agricultural spray drones, etc.
5-12S80A_ESC Parameters
| Type | Brushless Motor Electronic Speed Controller |
|---|---|
| Continuous Current | 80A |
| Instantaneous Current | 100A |
| Weight | Net Weight 19.2g |

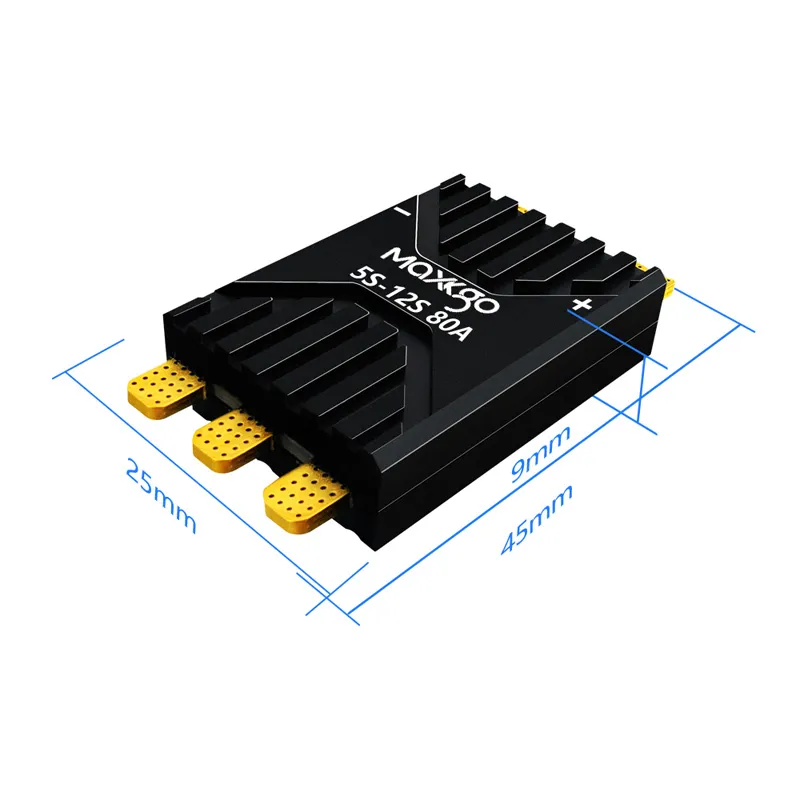

| Size | 45mm (L) x 25mm (W) x 9mm (H) |
| Input Power Supply | 5S-12S LiPo |
| Firmware Version | MAXKGO_F421 |
| Firmware Upgrade | Supports online upgrade via AM32.ca |
| Communication Protocol | Dshot 300, Dshot 600, Servo PWM |
| Signal Feedback | The TX wire/signal wire feeds back ESC voltage, current, temperature and motor speed |
5-12S80A_ESC Features
- MINI Size, MAX Power.
- Supports multiple protection functions: Low-voltage protection, over-temperature protection, motor stall protection, low-speed protection
- High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
- Stall protection for cars and crawlers
- Stuck rotor protection for multi-rotors
- Firmware upgradable via Betaflight passthrough, or single wire serial or Arduino web configurator at am32.ca
- Servo PWM and Dshot300/600
- EDT for full Dshot telemetry via signal wires
- Sinusoidal startup mode for smoother starting on cars and crawlers
5-12S80A_ESC Application Fields
- Agricultural spray drone
- Multi-rotor Drone
- Fixed-wing Model Aircraft
- RC Model Car
- Model Boat

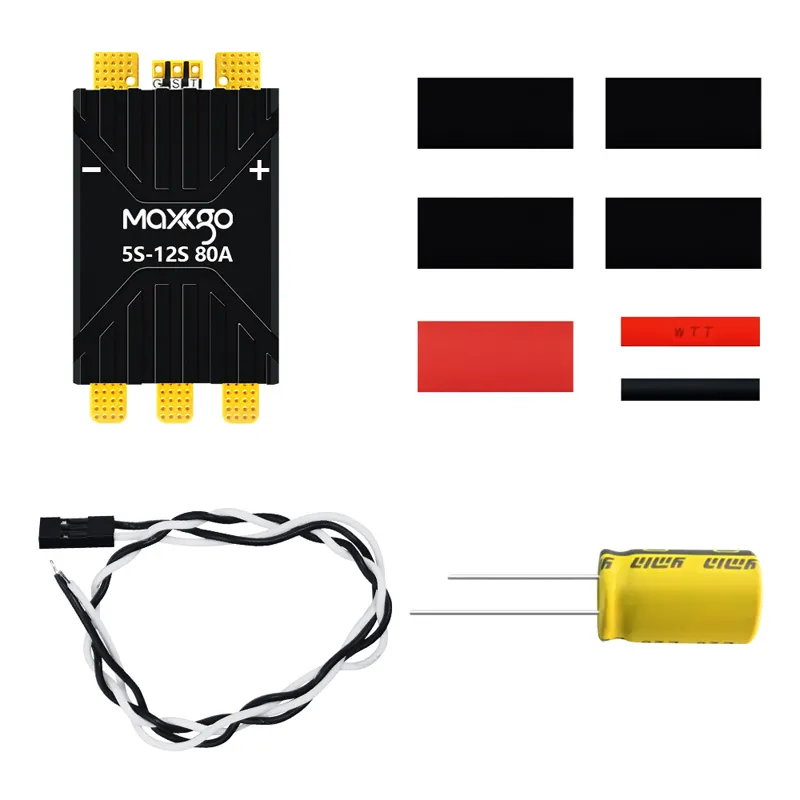

Mountings
- 5-12S80A_ESC x1
- Heat Shrink Tubing x5
- Electrolytic Capacitor x1 (63V 680uF)
- XT60 Male Connector x1
- Black Power Cable x1 (12AWG, 120mm)
- Red Power Cable x1 (12AWG, 120mm)
