Maxkgo 5-12S 200A MINI Brushless ESC for High Power FPV & UAV
Product Description
The Maxkgo 5-12S 200A MINI ESC is a high-performance brushless electronic speed controller designed for high-power FPV drones, UAV
platforms, and RC applications.
Supporting 5S-12S LiPo batteries with 200A continuous current and 250A burst current, it delivers reliable power control for large
multi-rotor drones, fixed-wing aircraft, RC models, and other high-current applications.
Powered by a high-performance ARM Cortex MCU and compatible with AM32 configuration tools, it supports advanced communication protocols,
telemetry feedback, and multiple protection functions.
Key Features
- 5-12S LiPo High Voltage Support
- 200A Continuous Current / 250A Burst Current
- AM32 Compatible Firmware
- Supports DShot300 / DShot600 / Servo PWM
- Supports ESC telemetry:
Voltage / Current / Temperature / RPM - Advanced protections:
- Low voltage protection
- Over temperature protection
- Motor stall protection
- Locked rotor protection

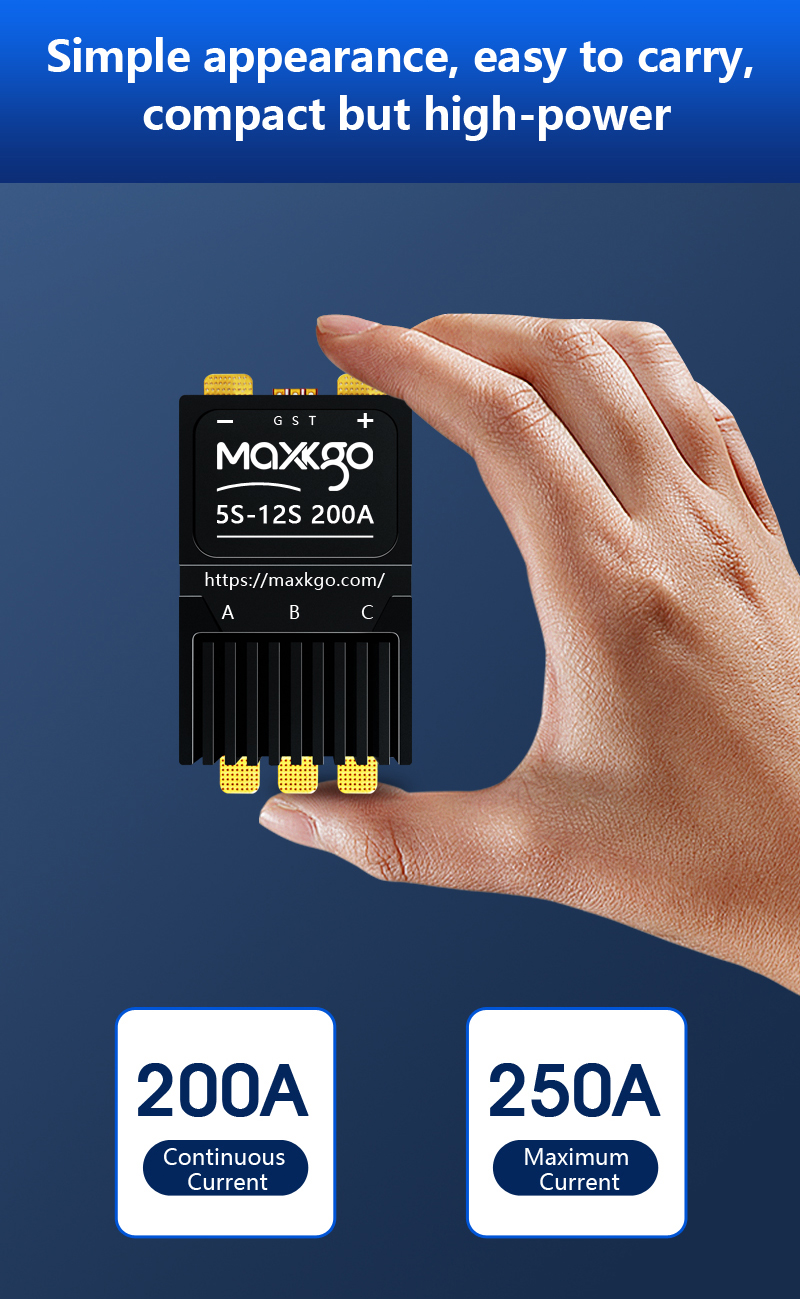

- Compact MINI design with high power output

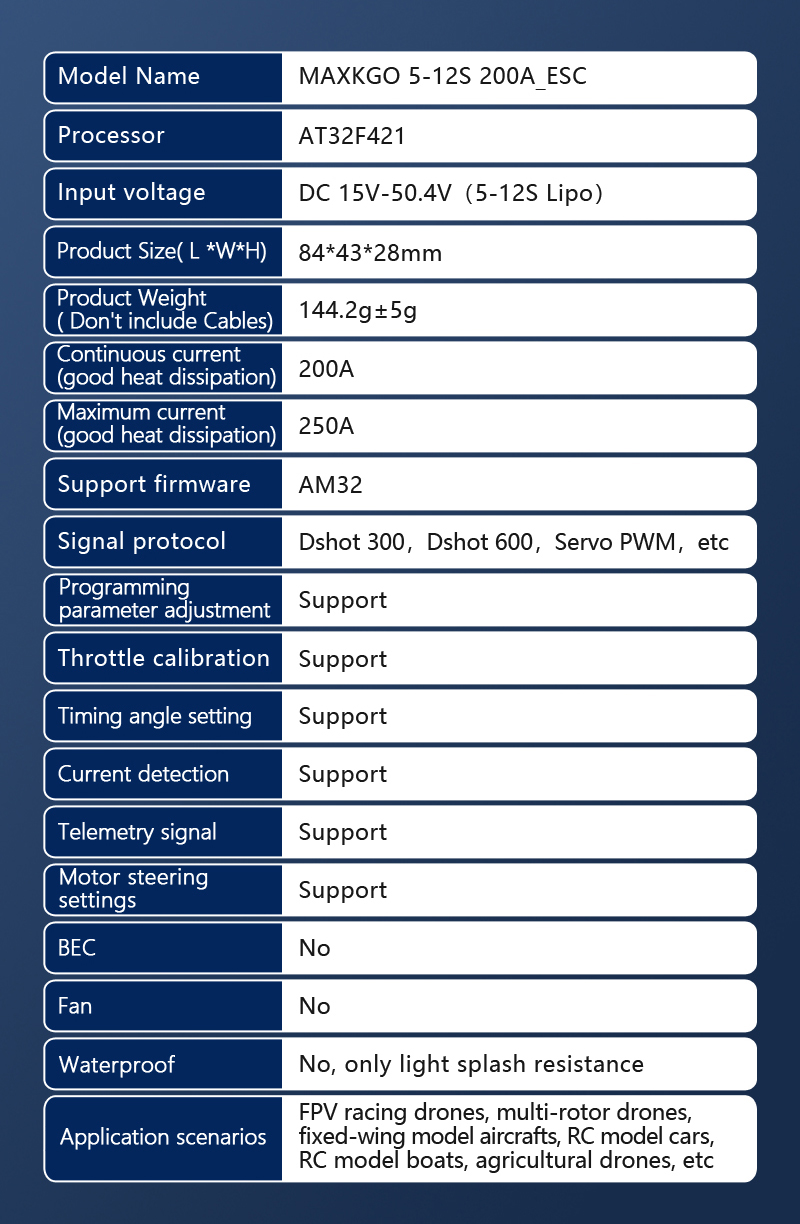

Technical Specifications
| Item | Specification |
| ESC Type | Brushless Electronic Speed Controller |
| Battery Input | 5S-12S LiPo |
| Continuous Current | 200A |
| Burst Current | 250A |
| Firmware | MAXKGO_12S_F421 |
| MCU | ARM Cortex 32-bit / 120MHz |
| Protocol | DShot300 / DShot600 / Servo PWM |
| Telemetry | Voltage / Current / Temperature / RPM |
| Size | 84 × 43 × 28mm |
| Weight | 140g ±5g |
Applications
- High-power FPV Drone
- Multi-rotor UAV
- Fixed-wing Aircraft
- RC Car
- RC Boat
- Industrial UAV Platforms
Package Includes
- 1 × 5-12S 200A MINI ESC
- 5 × Heat Shrink Tubes
- 1 × 2 Pin DuPont Cable (33cm)
