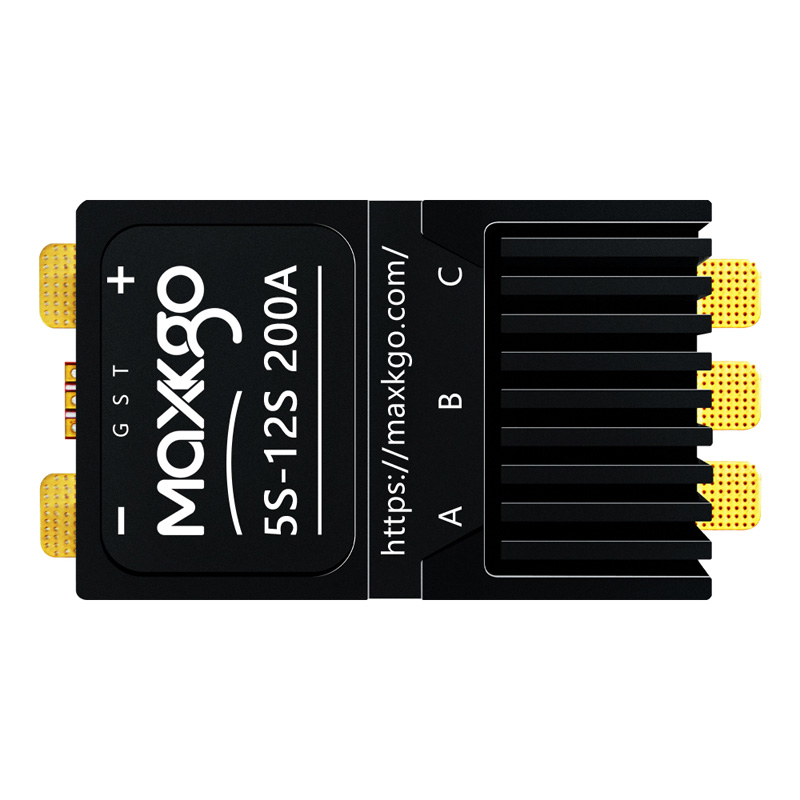

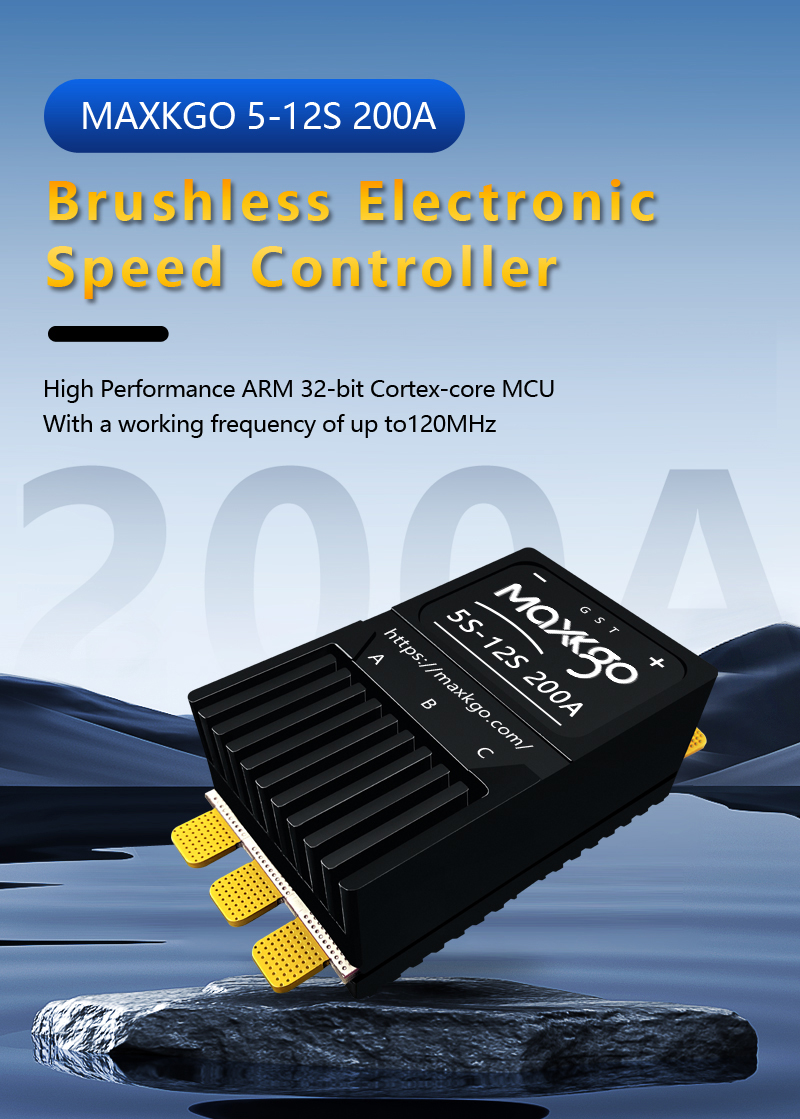

5-12S 200A MINI UAV ESC with 8AWG Power Cable

High Current ESC Solution for Heavy-Lift UAV & RC Applications

The Maxkgo 5-12S 200A MINI ESC is a compact high-performance brushless electronic speed controller designed for professional UAV and RC applications.

Supporting 5-12S LiPo batteries and up to 200A continuous current, this ESC delivers reliable power control for heavy-lift drones, agricultural UAVs, firefighting drones, fixed-wing aircraft, and high-performance RC models.

Compared with standard ESC versions, this model comes with pre-installed 8AWG power cables and XT90 connector, providing easier installation and higher current handling capability.

Key Features

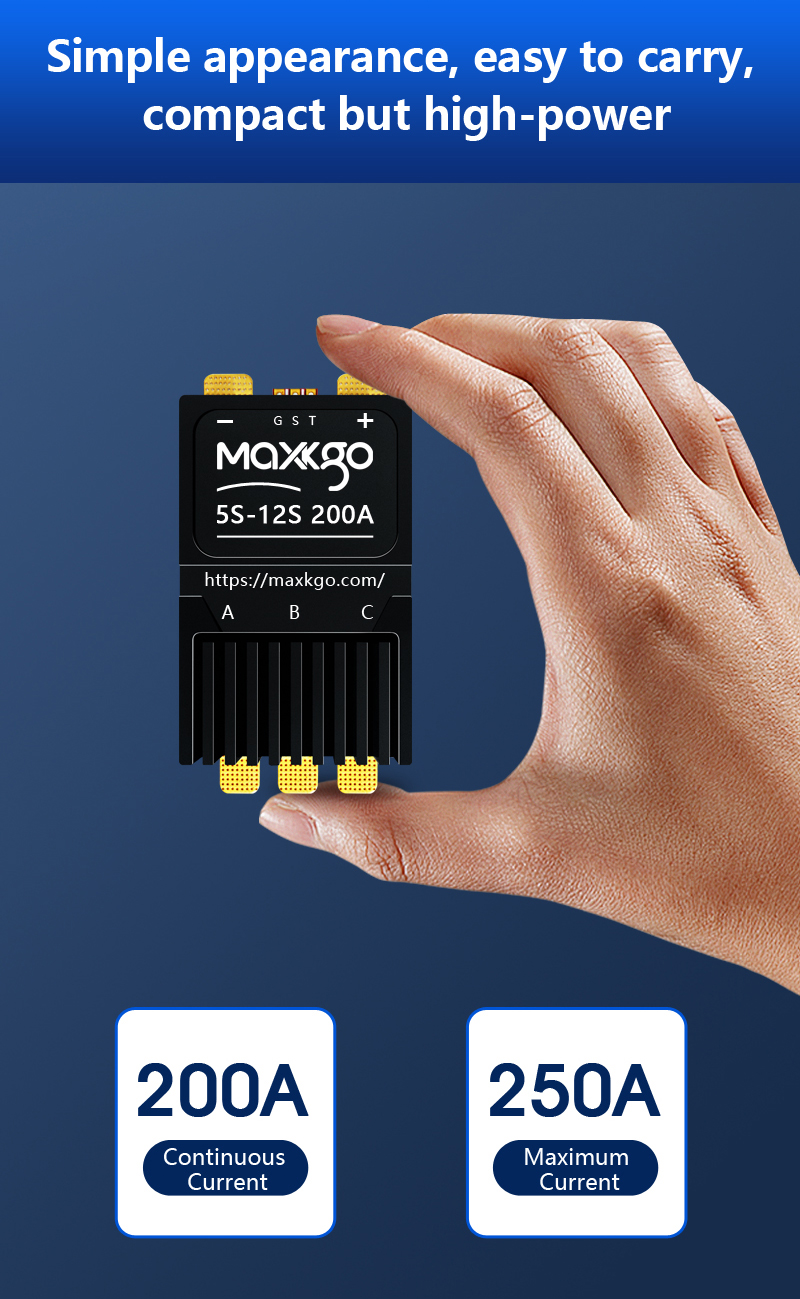

⚡ 200A High Current Capability

• Continuous current: 200A
• Burst current: 250A
• Supports 5S-12S LiPo battery systems

🔧 Ready-to-Install Power Wiring

• Equipped with 8AWG high-current power cables
• Includes XT90 connector
• Simplifies installation for high-power UAV platforms

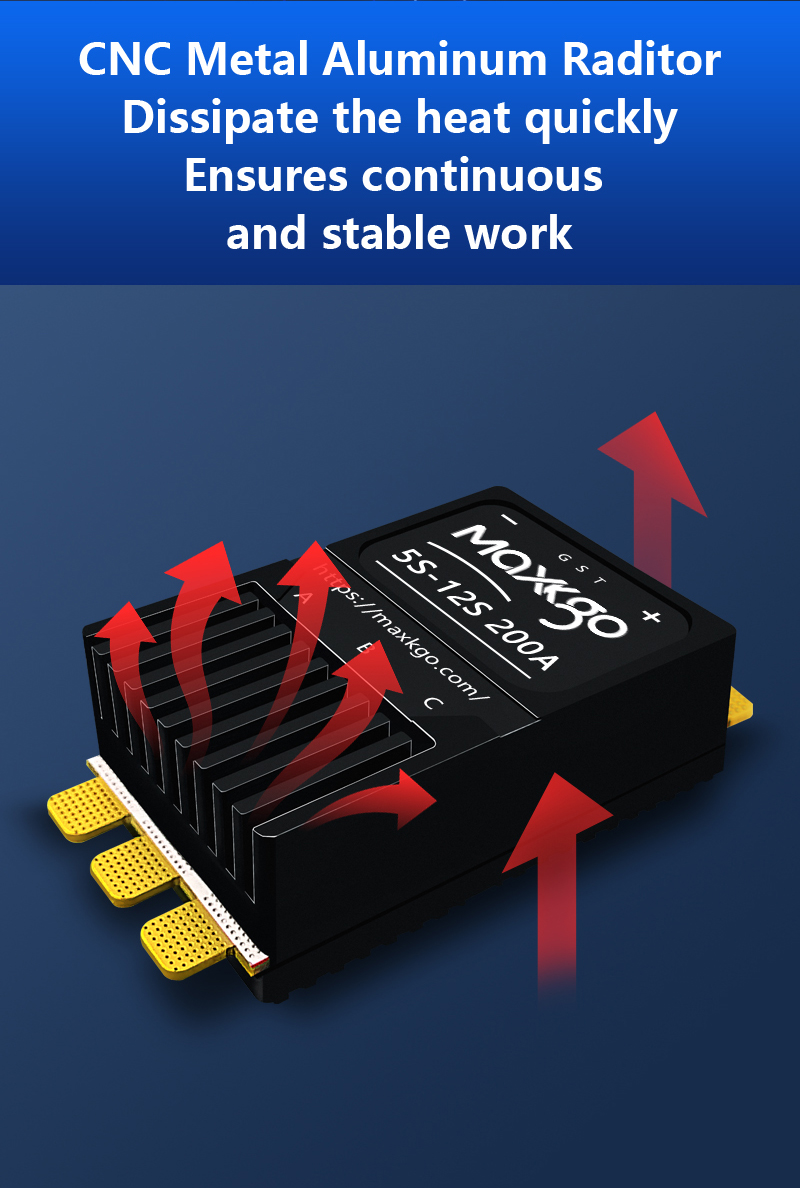

🛩 Compact Heavy-Power Design

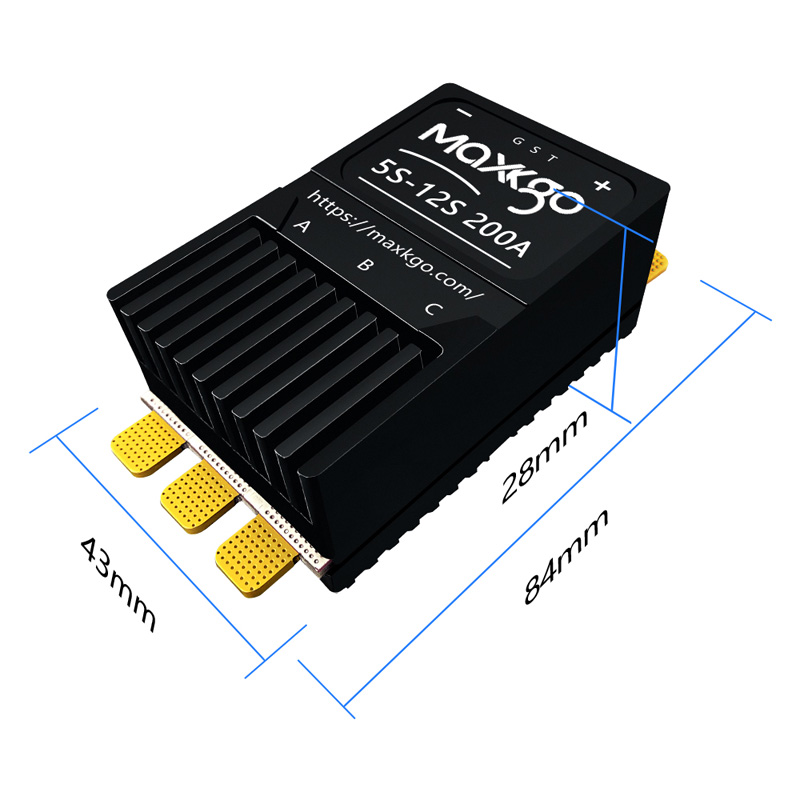

• Mini size:
  84 × 43 × 28mm
• Lightweight:
  140g ±5g
• Ideal for applications where space and weight are critical

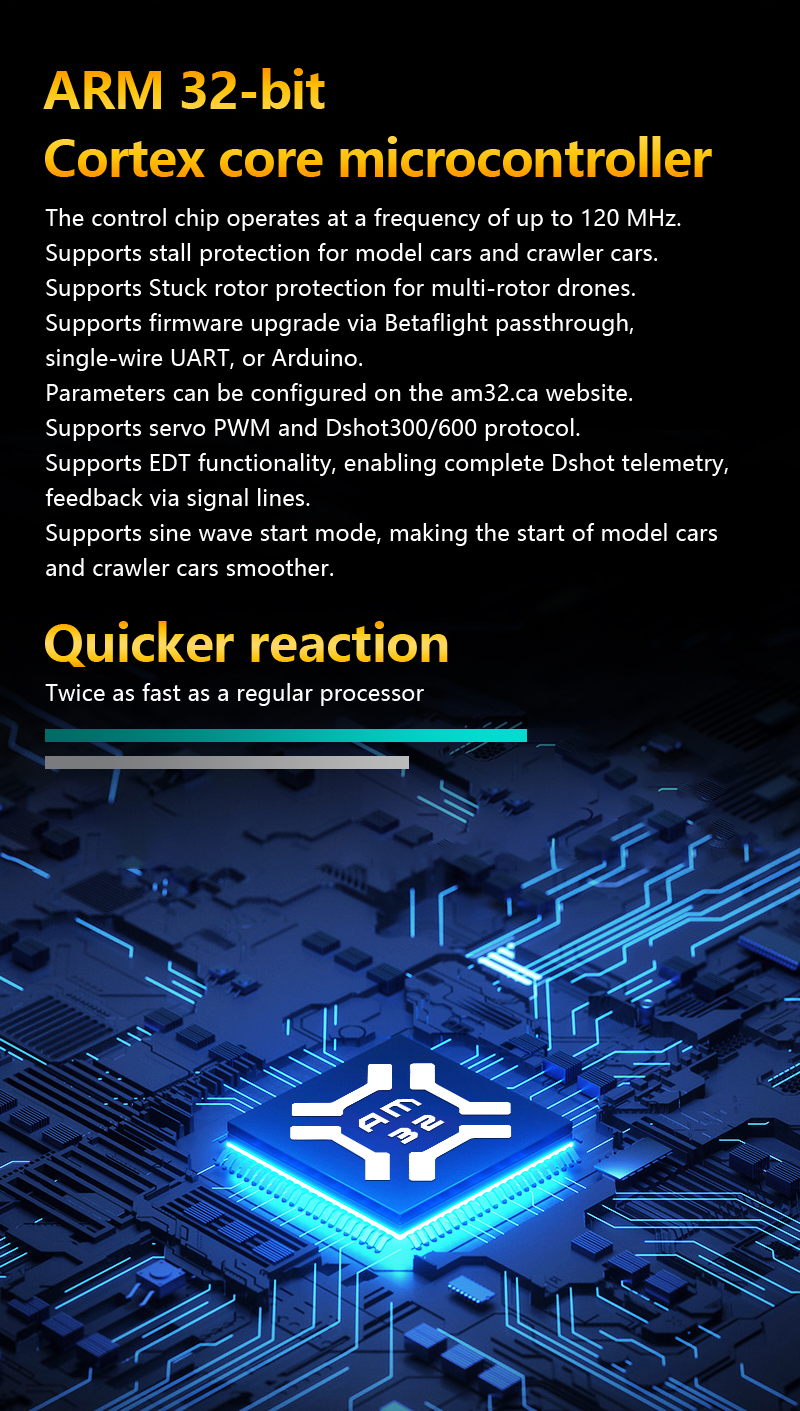

🧠 Advanced AM32 Firmware

• MAXKGO_12S_F421 firmware
• Online firmware upgrade via AM32 configurator
• Supports:
  • DShot300 / DShot600
  • Servo PWM
  • Full DShot telemetry

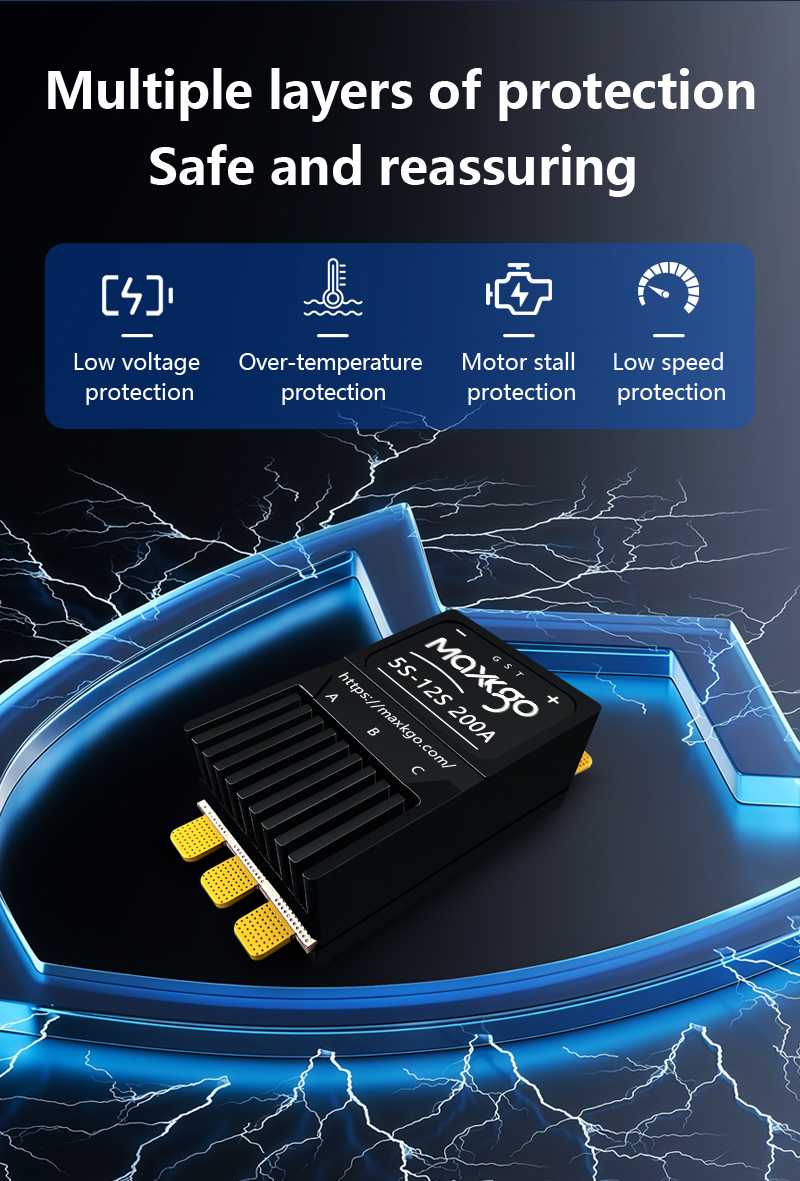

🛡 Multiple Protection Functions

• Low voltage protection
• Over-temperature protection
• Motor stall protection
• Rotor lock protection

Applications

Suitable for:

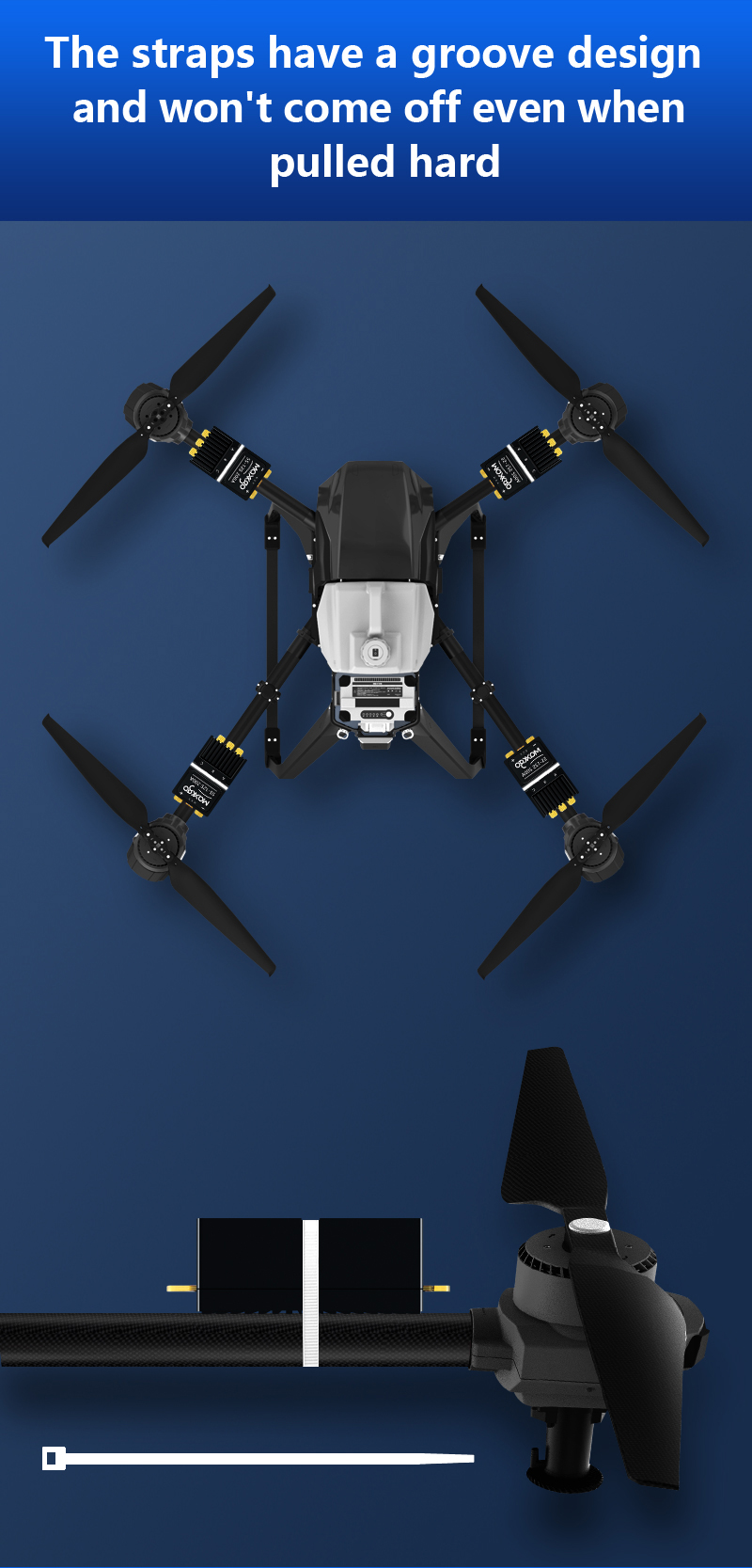

• Heavy-lift multirotor drones
• Agricultural UAVs
• Firefighting drones
• Industrial inspection drones
• Fixed-wing aircraft
• Electric cruise drones
• High-performance RC models

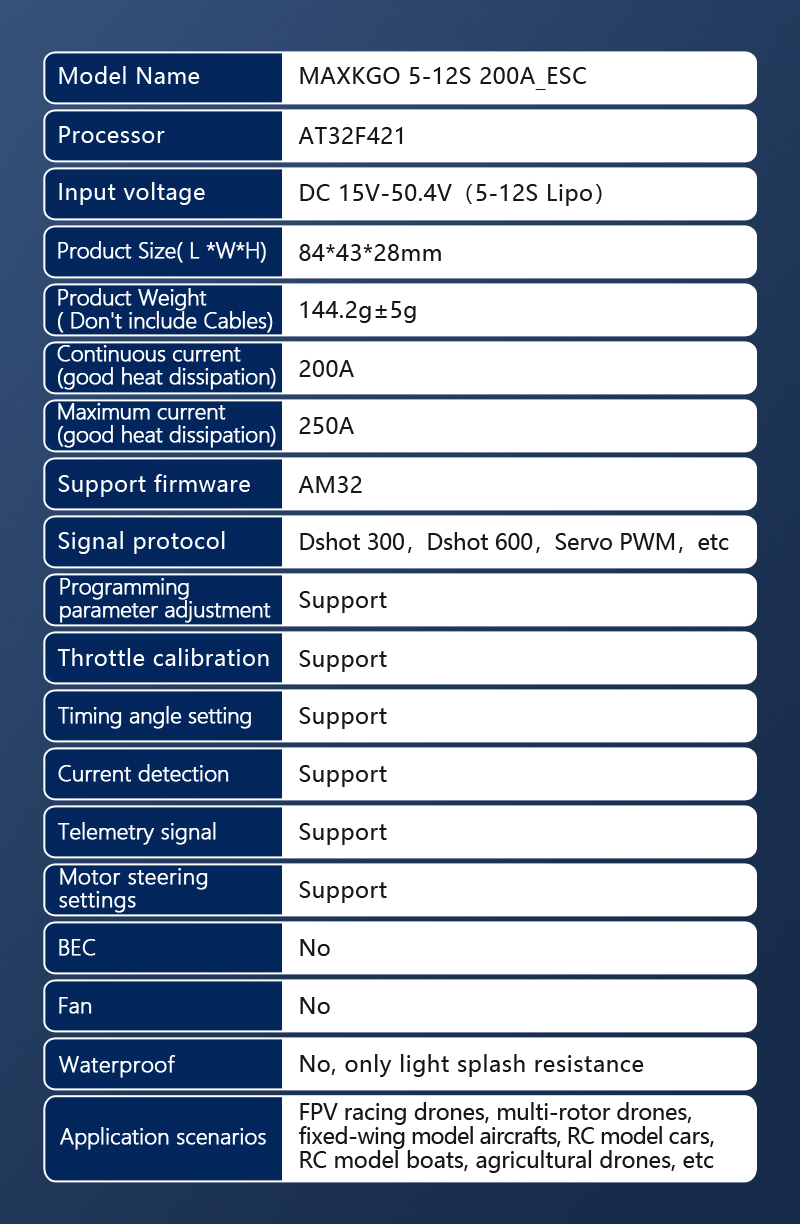

Specification

Package Includes

Power Cable Version

• 5-12S200AMINI_ESC ×1
• 8AWG Power Cable ×2
• XT90 Male Connector ×1

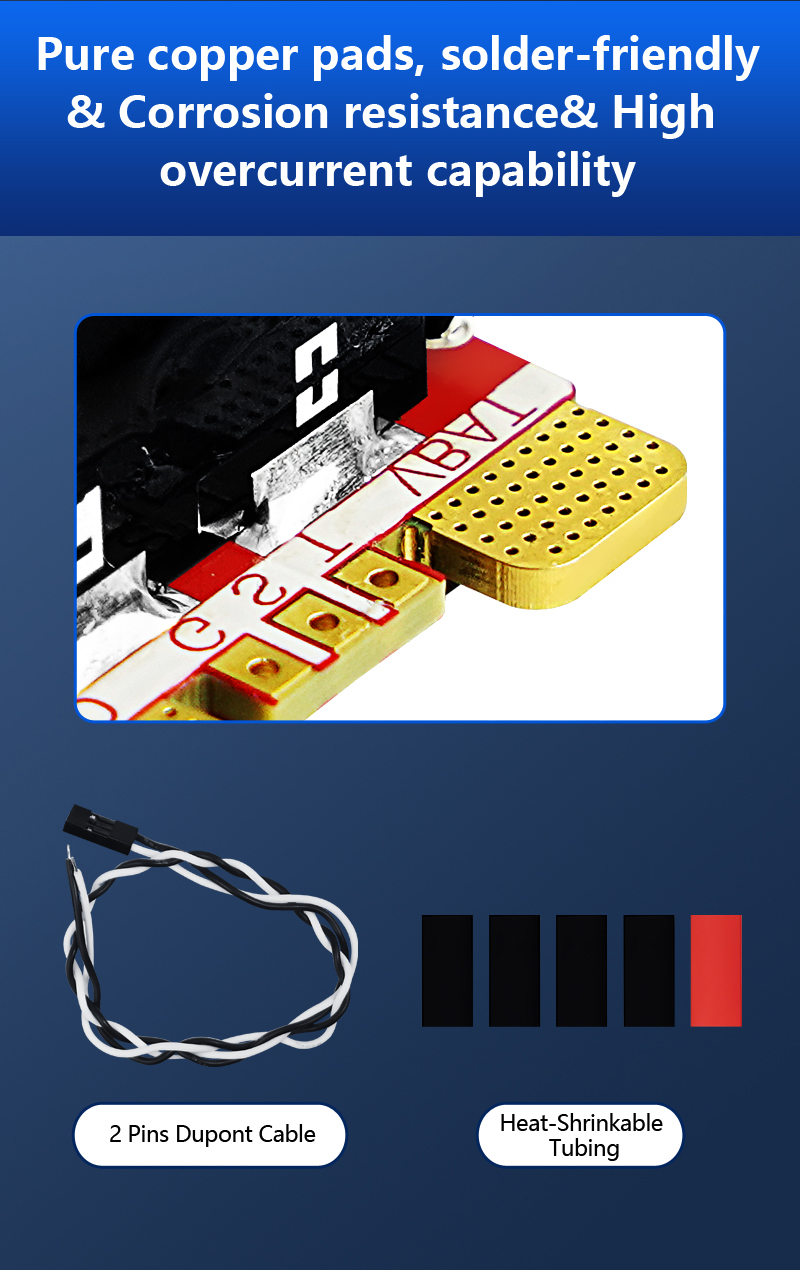

• 3 Pin DuPont Cable ×1
• 2 Pin DuPont Cable ×1
• Heat Shrink Tubes ×5
•
