MKBMS 4S-24S 20A Only Charge Battery Protect Board is designed to reduce charging risk. It is compact, simple to use without configuration, and supports high charging current, balance indicator LEDs, overcharge protection and overtemperature protection.
This board does not support discharge protection. Do not discharge through this protection board.
Specs
| Type | Charge only |
|---|---|
| Cell Chemistry | Li-ion (3.7V nominal) |
| Balance method | Passive balance |
| Series Count | 4S-24S |
| Charge Current | 20A |
| Overcharge Voltage | 4.25V |
| Overcharge Reset | 4.19V |
| Balance | @4.2V |
| Overtemperature | 60 C |
| Overtemperature Reset | 40 C |

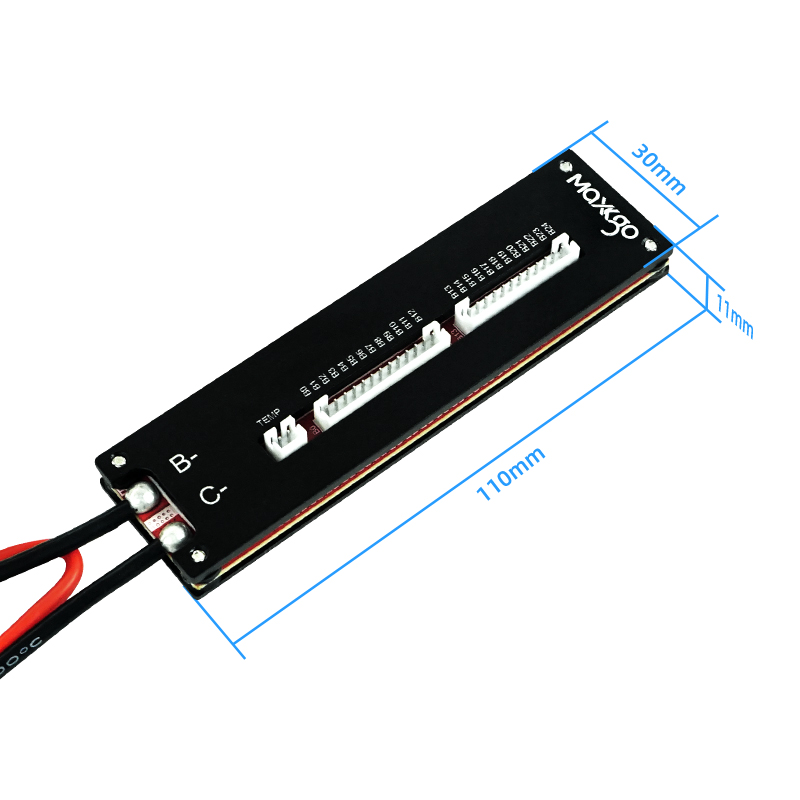

| Size | 110*30*11mm |
| Net weight | 30g |
Features
- Compact charge only design
- Cell balance indicator LED
- Compatible with 4S-24S battery packs
- Ultra-compact and simple to use
- Anodized aluminum heatsink case
Functions
- Balance function
- Overcharge protection
- Overtemperature protection
- Cell balance indicator LED
Common Uses
- One-wheeled electric skateboards
- Electric Skateboards
- Electric Scooters
- Electric Bikes
- EUCs

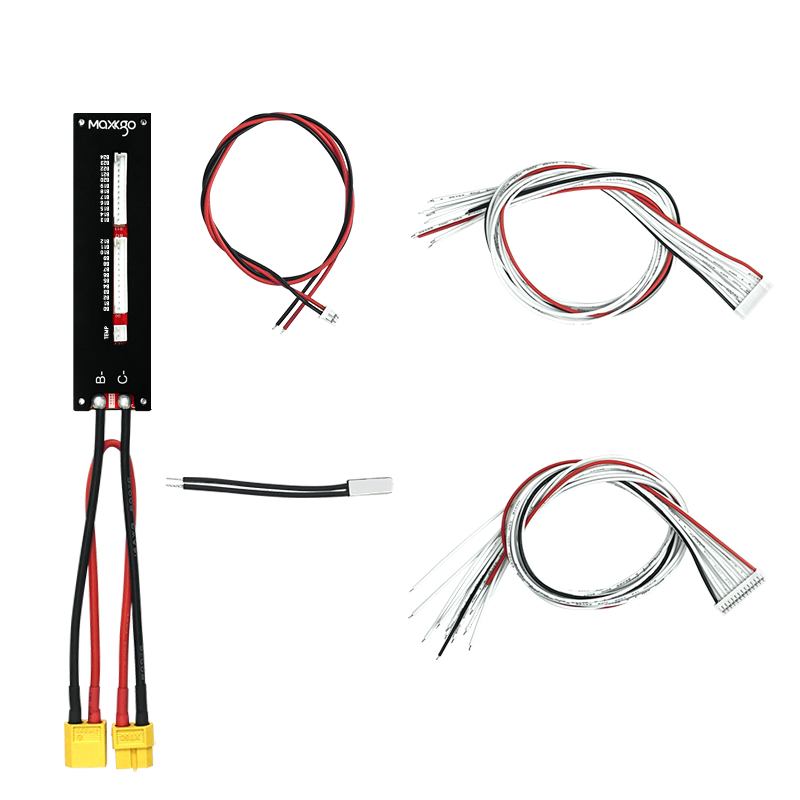

Package Included
- 1* MKBMS 4S-24S 20A Only Charge Board
- 1* GH2.0 single head 12P line
- 1* GH2.0 single head 13P line
- 1* HY2.0 single head 2P cable with thermal protection switch
- 1* Charging cable with XT30 connectors
Operation Notes

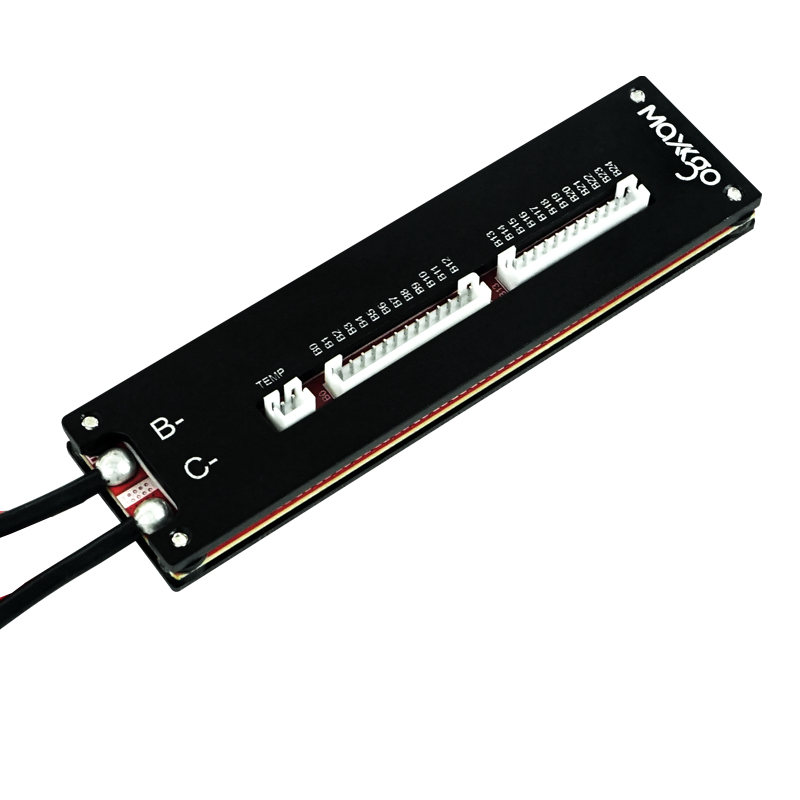

- Please ensure the correctness of the wiring sequence from B0-B12 and B13-B24, with voltage increasing from low to high
- This BMS is compatible with battery packs up to 24S, over 100V DC when fully charged. Electric shock from high voltage may cause serious injury
- This device reduces charging risk and will not protect against overcurrent discharge, undervoltage, internal pack shorts or pack overtemperature
