MKBMS is based on the modular LTC68XX battery management platform and connects to slave boards and integrated boards through the ISOSPI interface.
MKBMS Function
| Overcharge protection | Yes |
|---|---|
| Over discharge protection | Yes |
| Temperature protection | Yes |
| Thermal management | Yes |
| Balance function | Yes |
| Battery pack capacity detection | Yes |
| Battery internal resistance detection | Yes |
| Support battery | Li-ion, lithium polymer, lithium phosphate and most lithium batteries |

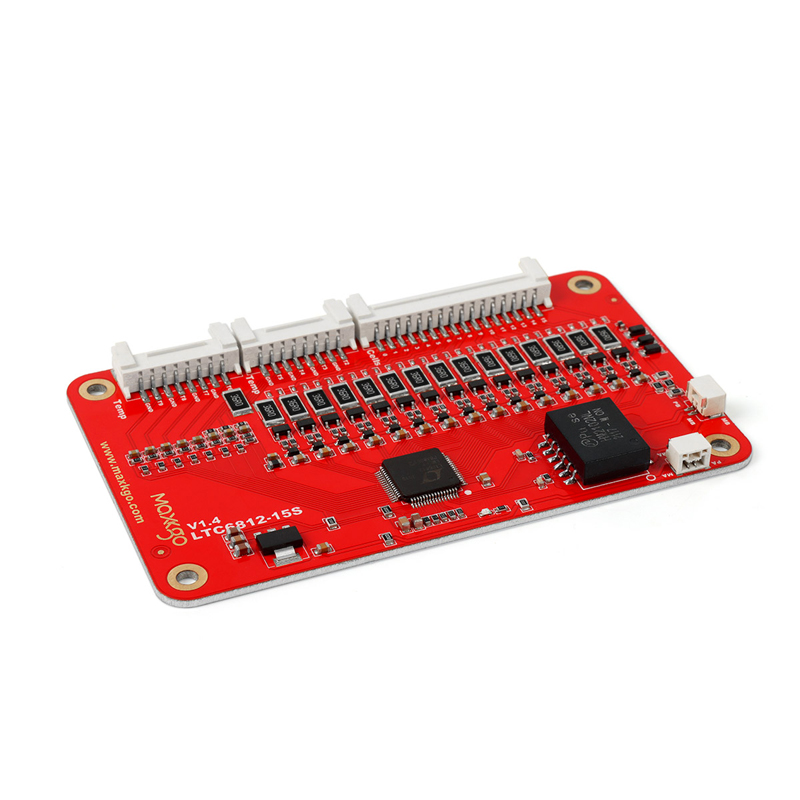

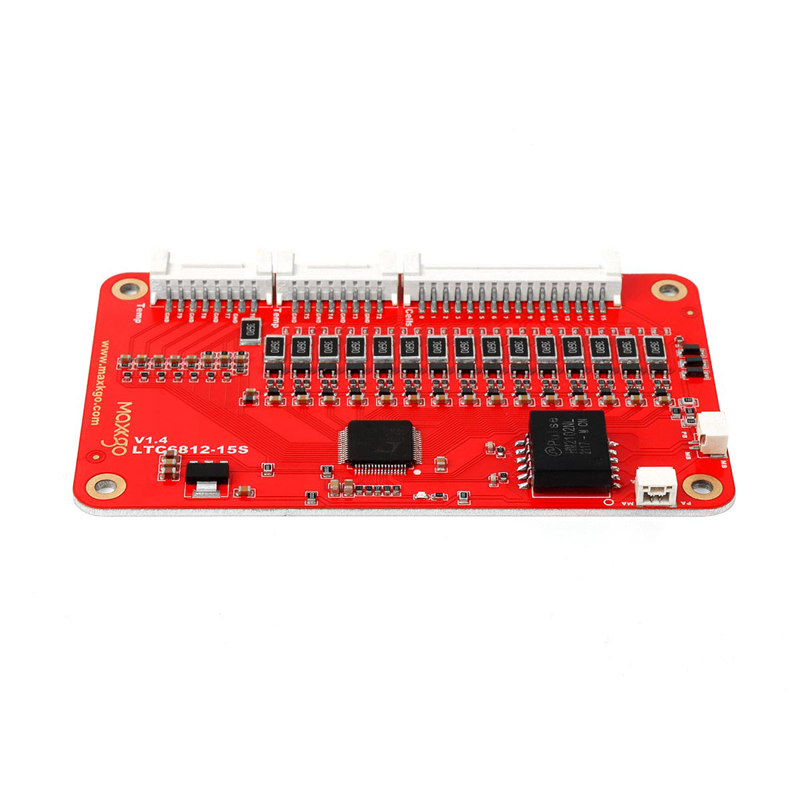

LTC6812 15S Slave Features
- Aluminum alloy PCB, better heat dissipation effect
- Compatible with MKBMS and ENNOID BMS
- 5-15 cell level monitoring per board
- 1+8 temperature sensors per slave
- Self-powered by the monitored cells
- Ultra-low power consumption, sleep mode = 6uA

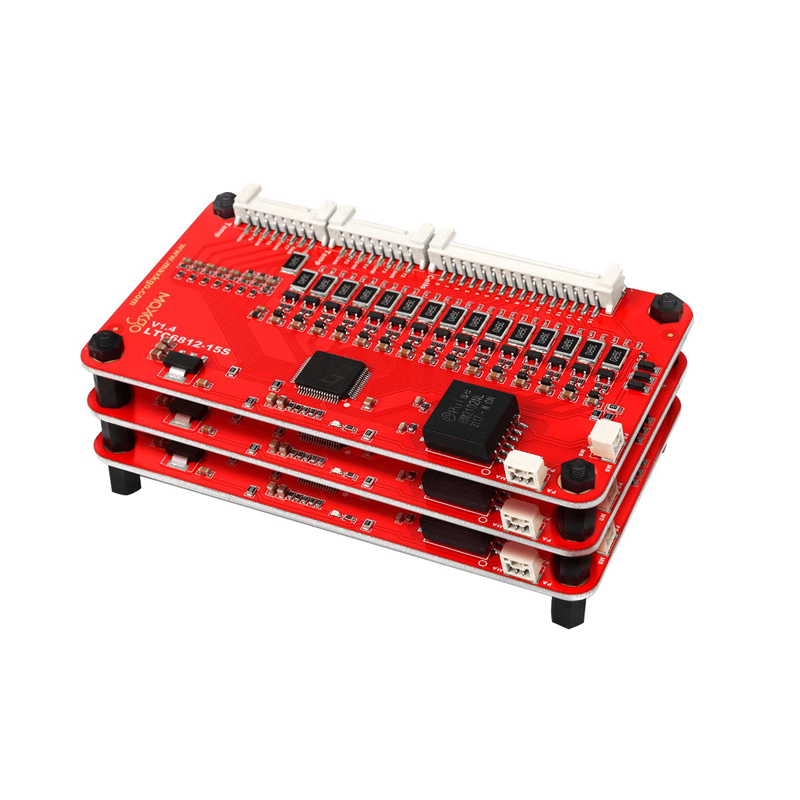

- Multiple slave boards can form an integrated board through the ISOSPI interface
- Daisychain Master ISOSPI communication
- 1.2mV accuracy, -40 to 120C operation
- 33 ohm balance resistors (0.125A capacity) on all channels
- Scalable and isolated 1000VDC+

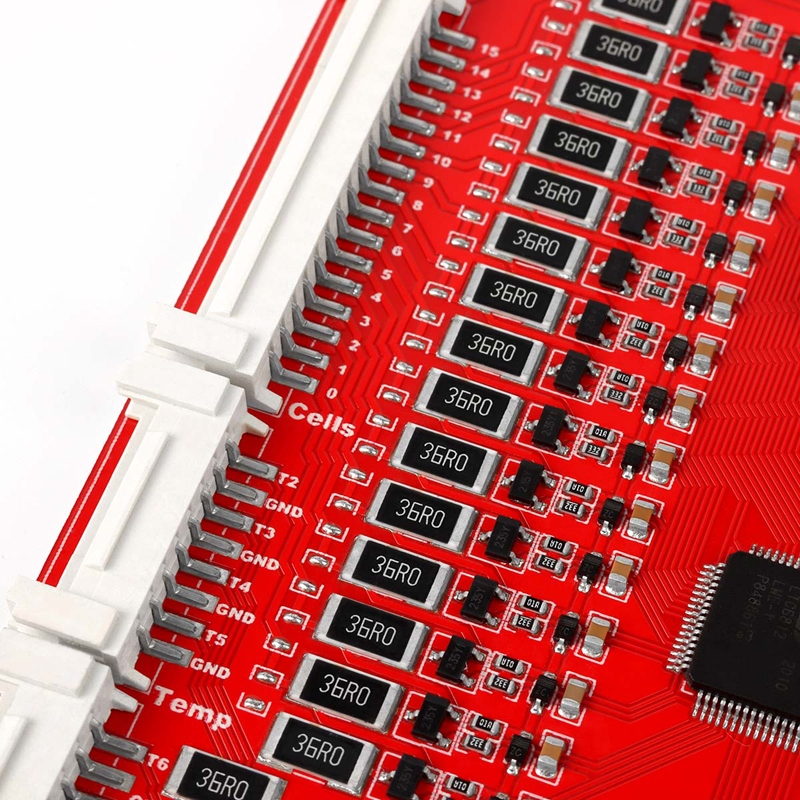

- Molex SL horizontal connectors for balance and temperature
Pack Configuration Examples
- MKBMS monitoring 25S pack: 2 x LTC6812-15S: 13S + 12S (Two slaves partially loaded)
- MKBMS monitoring 27S pack: 2 x LTC6812-15S: 13S + 14S (Two slaves partially loaded)
- MKBMS monitoring 29S pack: 2 x LTC6812-15S: 14S + 15S (Two slaves partially loaded)
- For uneven cell count in series, only the last slave board in the daisy-chained loop should have one cell less connected than the other slaves. Ex: 39S = 10S + 10S + 10S + 9S
MKBMS Functions
- Current and voltage protection
- Battery health monitoring
- Thermal management
- Support batteries: Li-Ion, Li-Polymer and Li-Phosphate
- Field programmable
- Current limit calculation
- Fully programmable CANBUS interface
- Drift state of charge
- Integration with other devices
- Multiple BMS units connected in series
- Current sensor support
- Isolation from fault detection
- Automotive grade design
- Software for data logging and programming
Application Fields
- Electric vehicles
- Electric patrol cars
- Handling robots
- Automatic forklifts
- Electric two-wheelers
- AGV forklifts
- Electric tricycles
- RV
- Solar street lights
- Outdoor energy storage
- Home energy storage equipment
- Robots

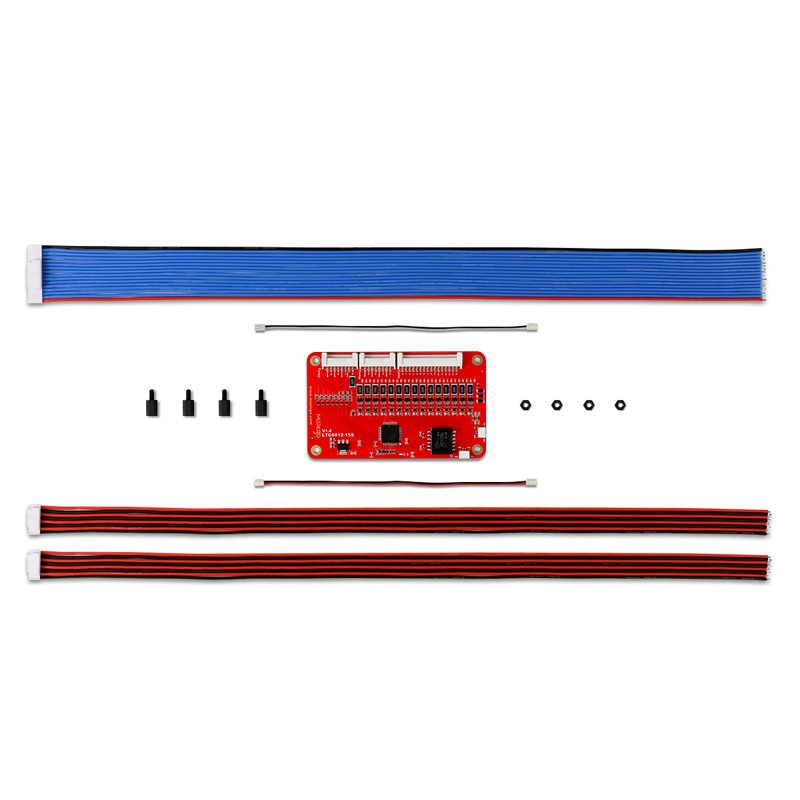

Shipping List
- 1 x LTC6812-15S slave board
- 2 x GH1.25 double-head 2P same-direction cables
- 2 x HY2.0 single-head 8P cables
- 1 x HY2.0 single-head 16P cable
- 4 x Nylon columns
- 4 x Nylon nuts
Operation Notes
- The first temperature channel is used by the slave board itself.
- The following 8 temperature sensors are not included in the package list but indicate interfaces that can connect up to 8 temperature sensors.
Size and Weight

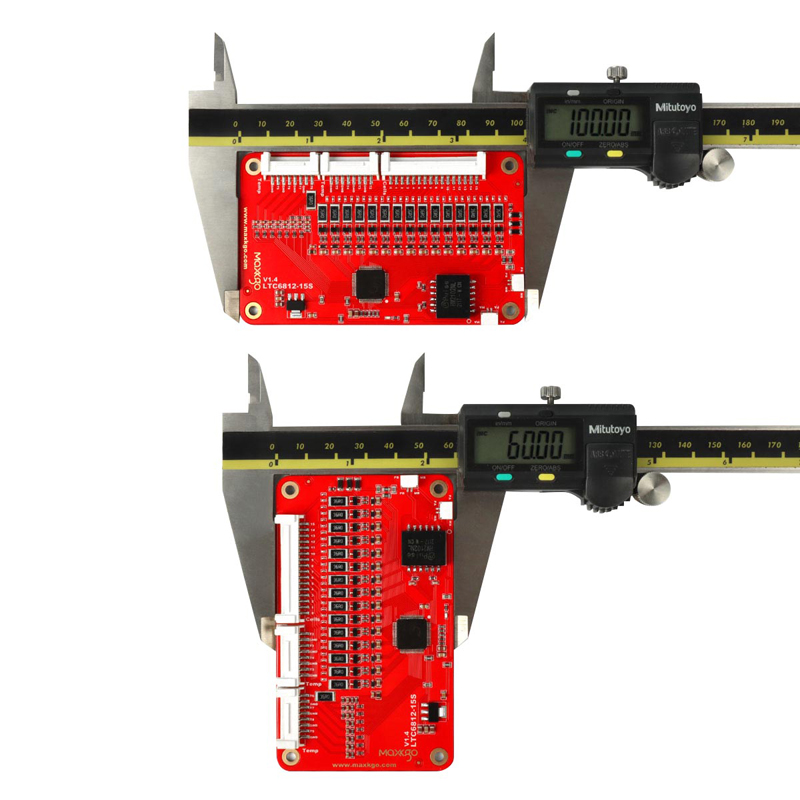

- Size: 100 x 60mm

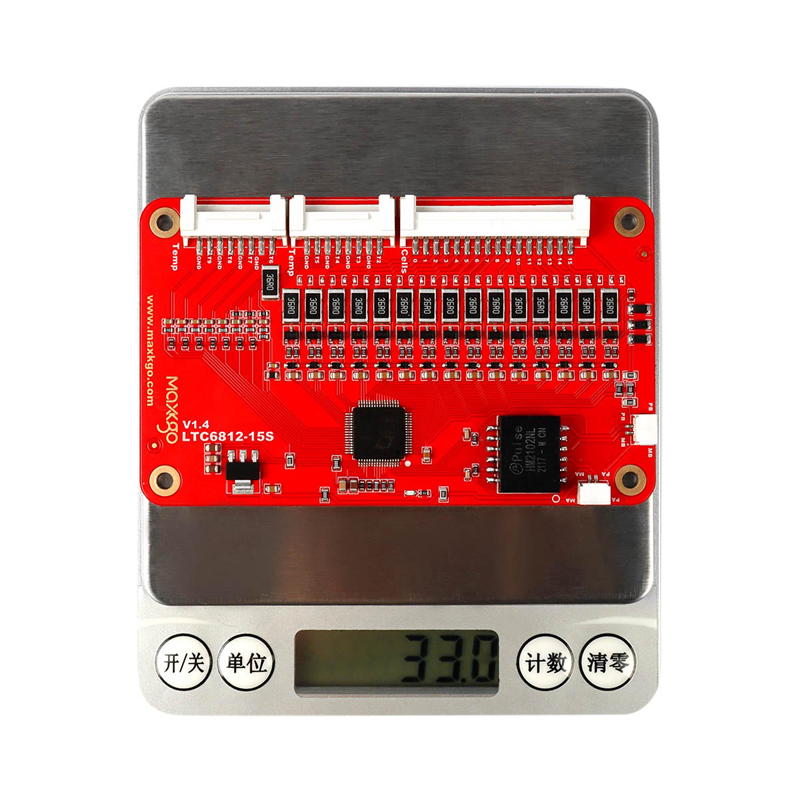

- Net Weight: 33g
- Package Size: 140 x 110 x 50 mm
- Package Weight: 120g
- Outer Package Size: 160*120*75mm
- Outer Package Weight: 240g
