MKBMS is developed based on the open source materials of DieBieMS and ENNOID BMS. Currently MKBMS is compatible with ENNOID firmware.

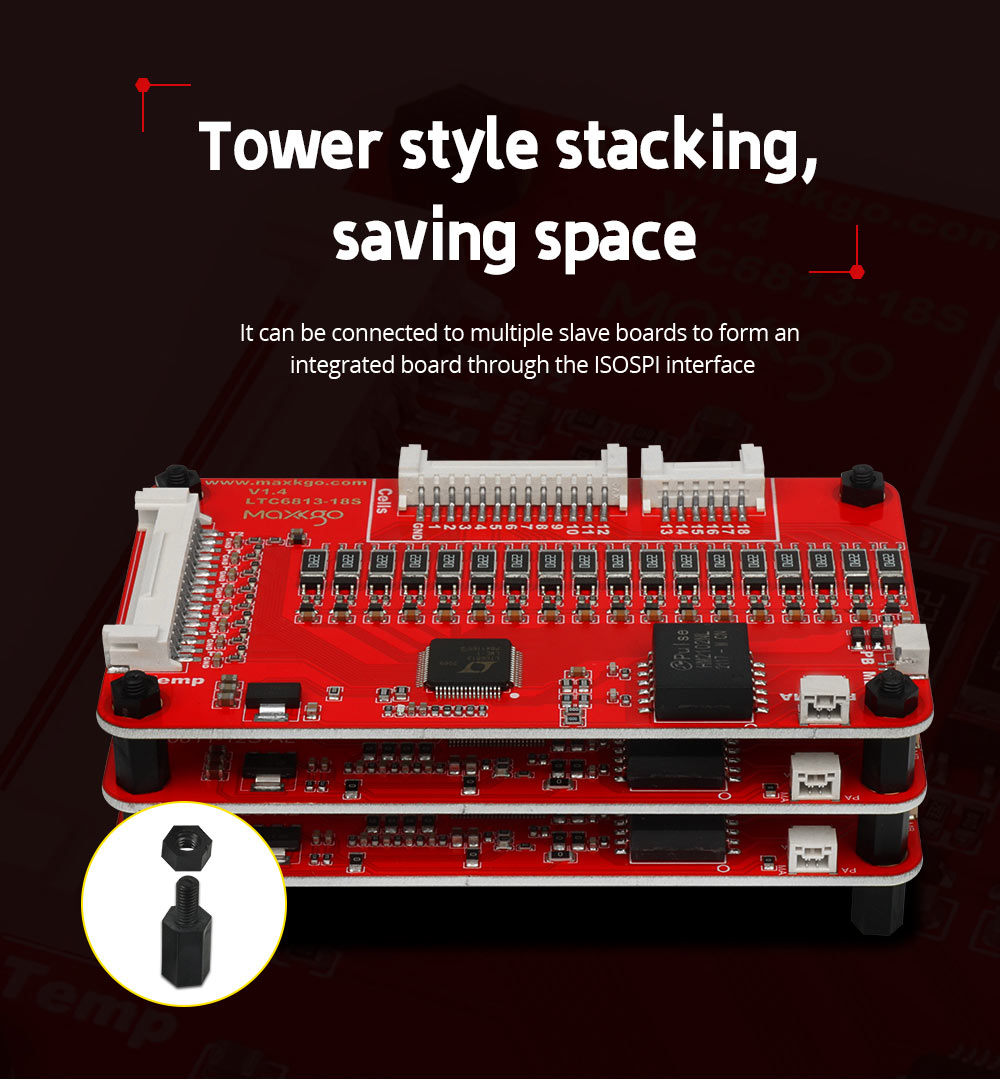

MKBMS is based on the modular LTC6813 battery management platform and connects to slave boards and integrated boards through the ISOSPI interface.
BMS Function
| Overcharge protection | Yes |
|---|---|
| Over discharge protection | Yes |
| Temperature protection | Yes |
| Thermal management | Yes |
| Balance function | Yes |
| Battery pack capacity detection | Yes |
| Battery internal resistance detection | Yes |
| Support battery | Li-ion, lithium polymer, lithium phosphate and most lithium batteries |

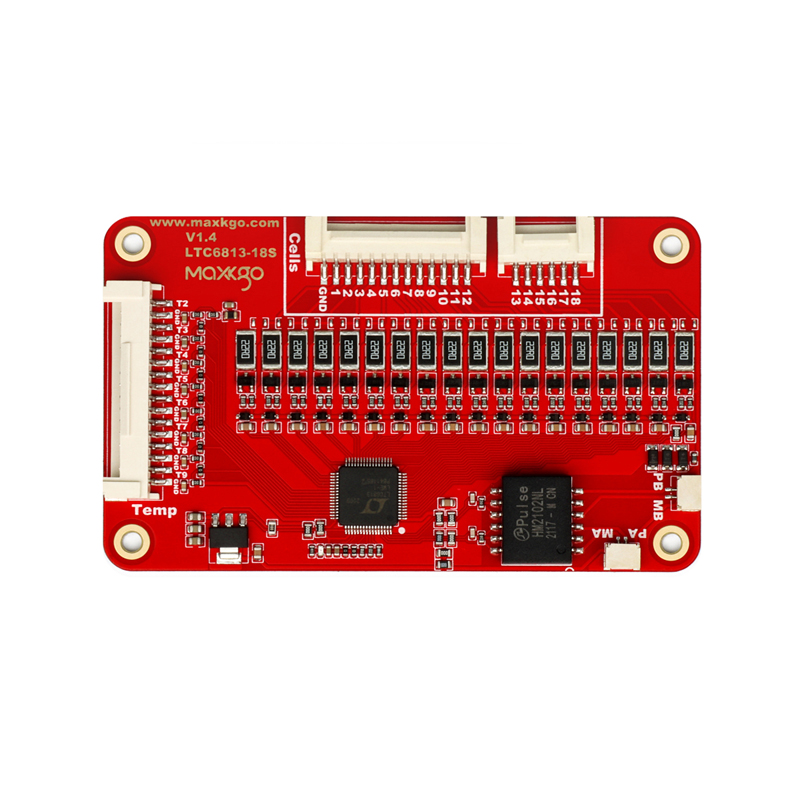

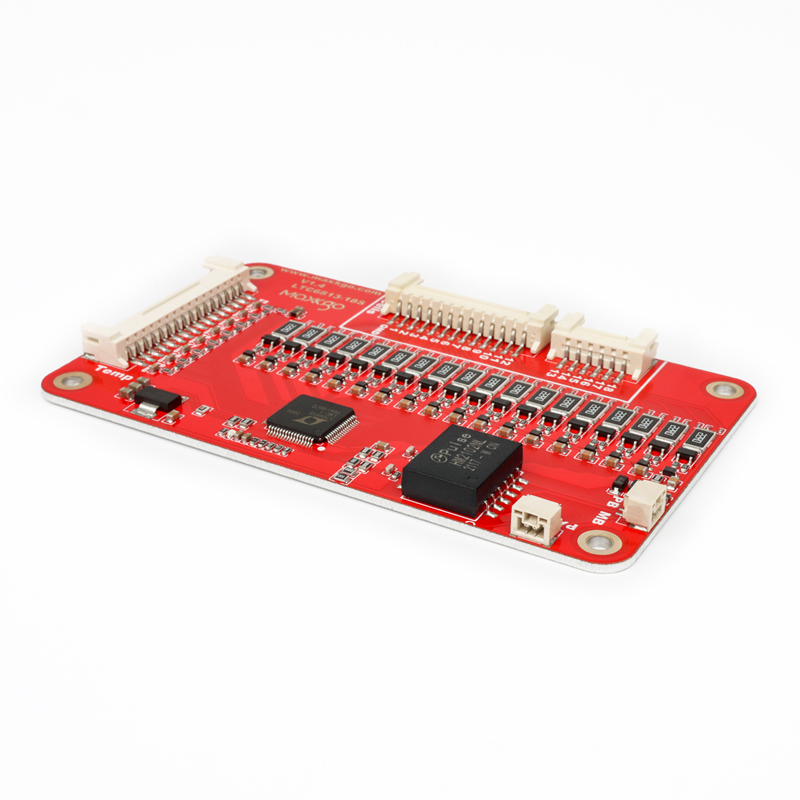

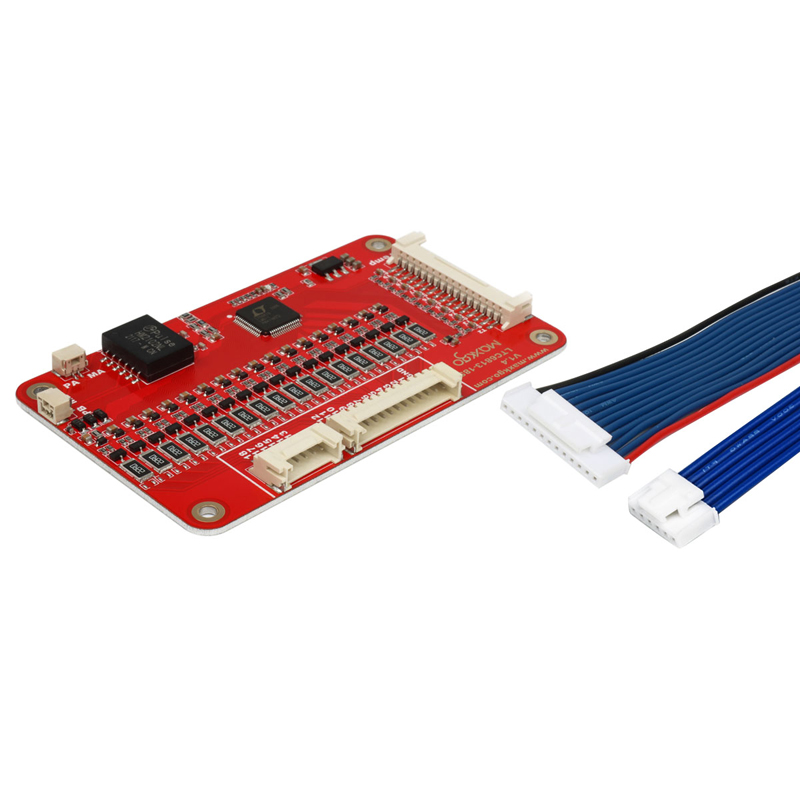

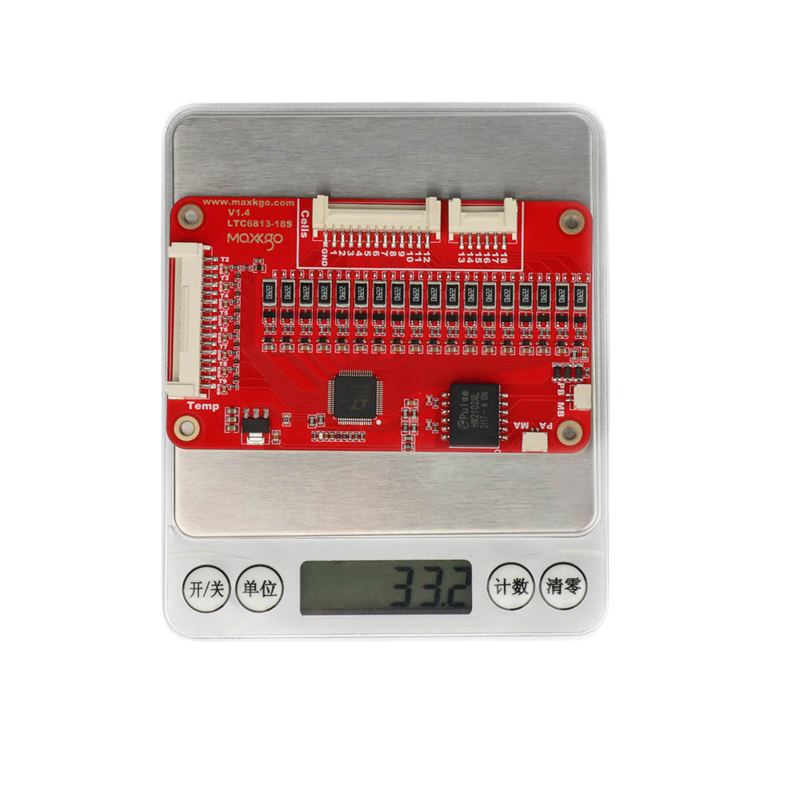

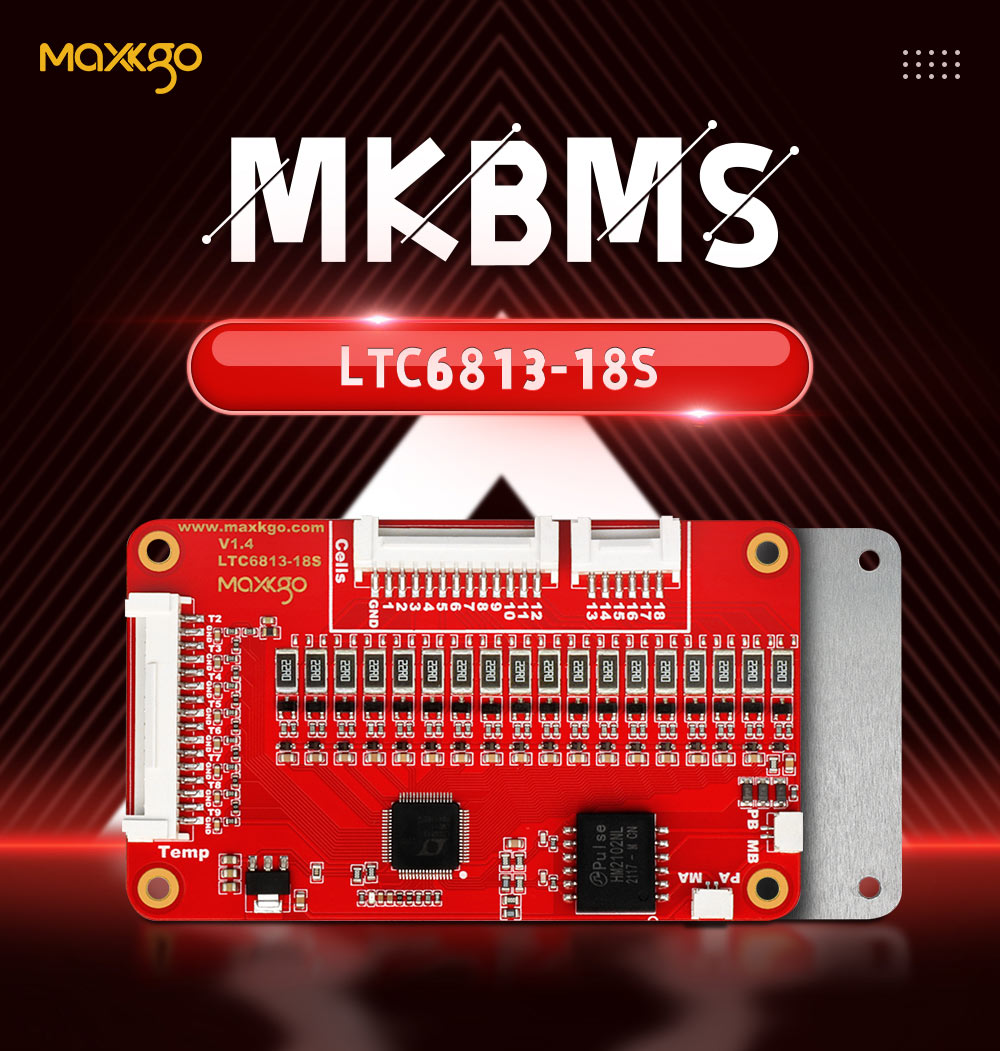

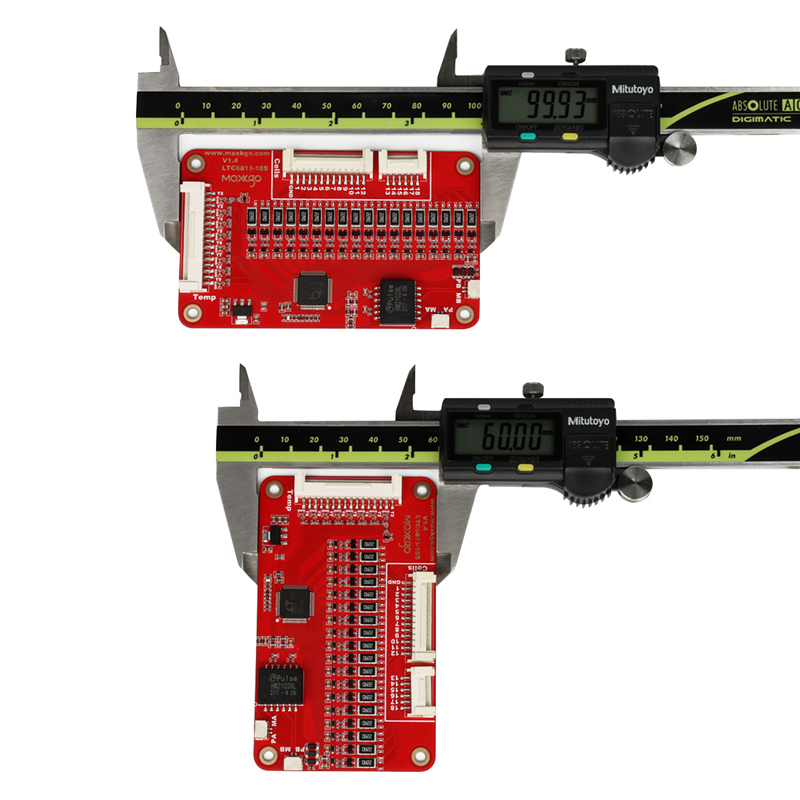

LTC6813 18S Slave Features
- Aluminum alloy PCB, better heat dissipation effect
- Compatible with MKBMS and ENNOID BMS
- 5-18 cell level monitoring per board
- 1+8 temperature sensors per slave
- Self-powered by the monitored cells
- Ultra-low power consumption, sleep mode = 6uA

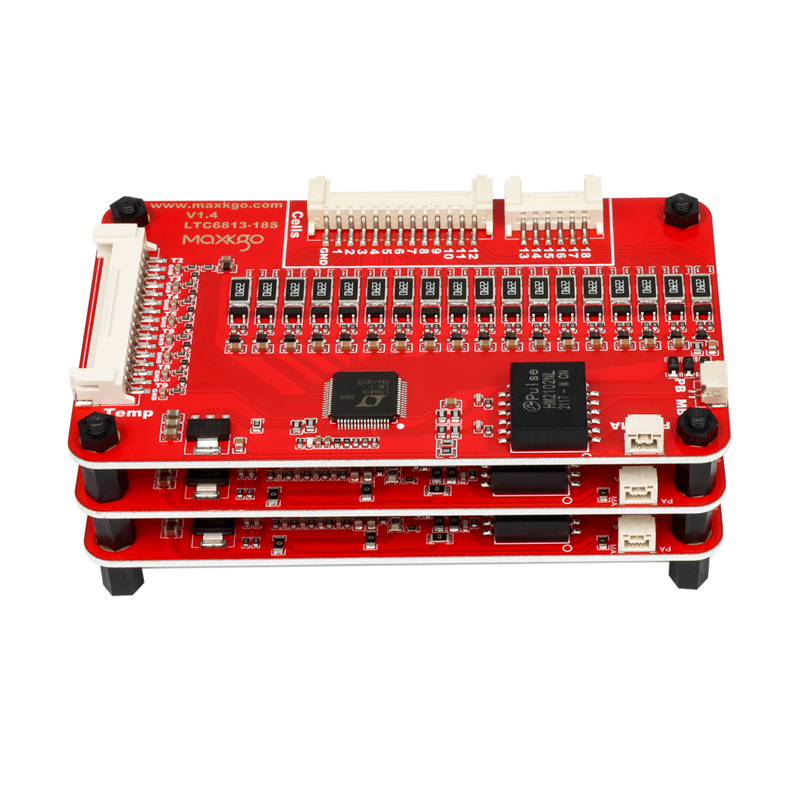

- Daisychain Master ISOSPI communication
- 1.2mV accuracy, -40 to 120C operation
- 33 ohm balance resistors (0.125A capacity) on all channels
- Scalable and isolated 1000VDC+

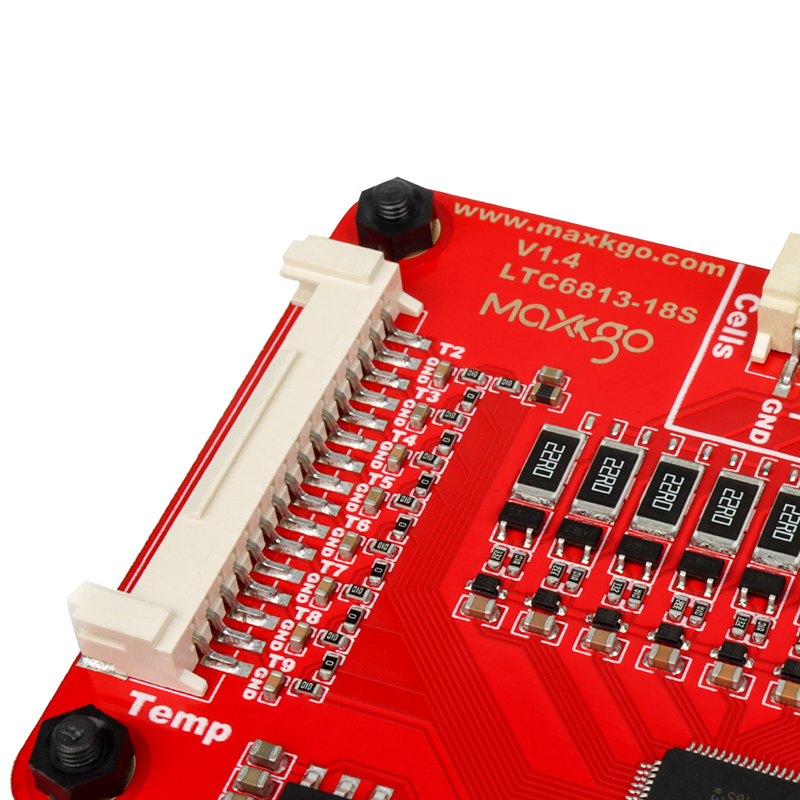

- Molex SL horizontal connectors for balance and temperature

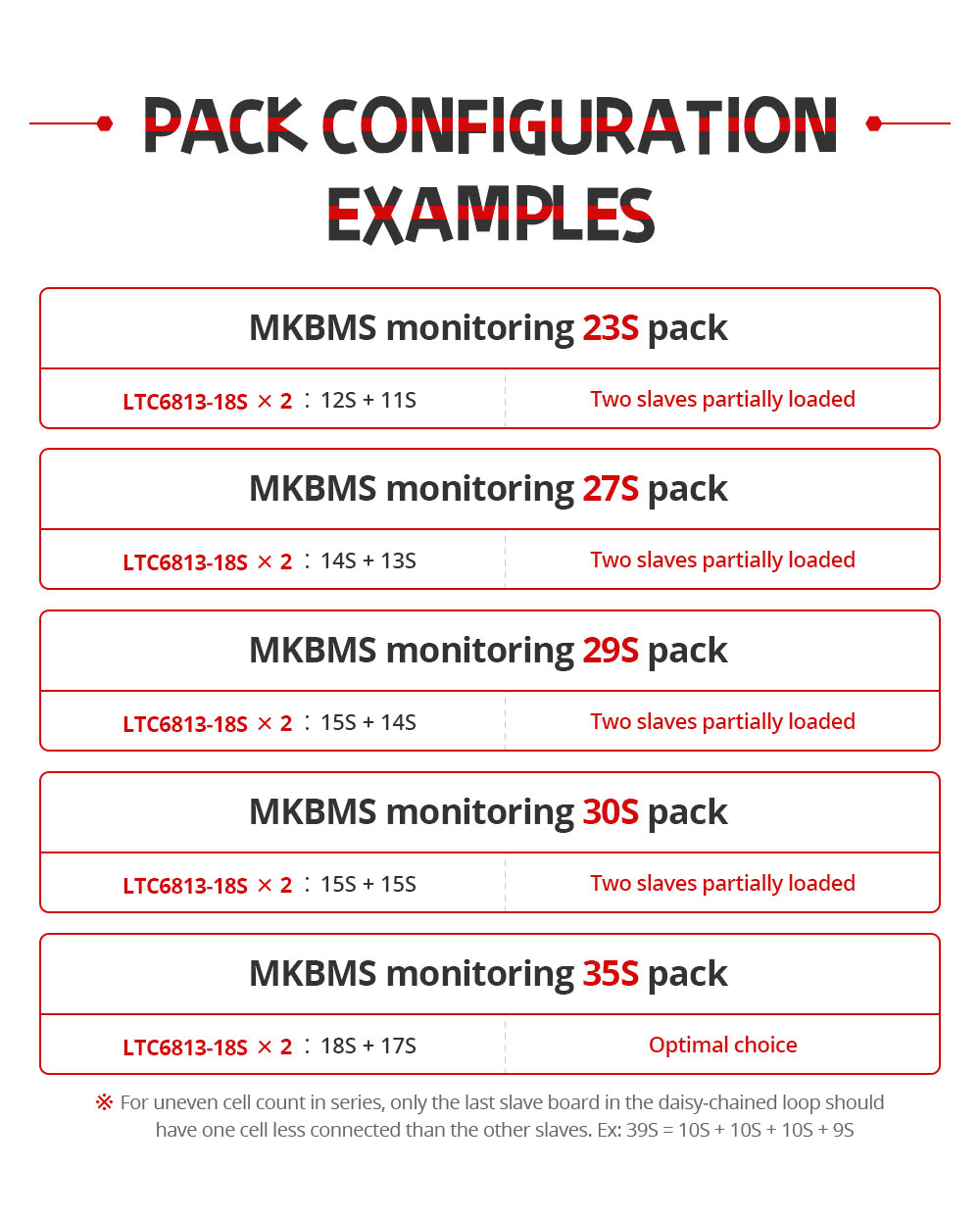

Pack Configuration Examples
- For uneven cell count in series, only the last slave board in the daisy-chained loop should have one cell less connected than the other slaves.
MKBMS Functions
- Current and voltage protection
- Battery health monitoring
- Thermal management
- Field programmable
- Current limit calculation
- Fully programmable CANBUS interface
- Current sensor support
- Isolation from fault detection
- Software for data logging and programming
Application Fields
- Electric vehicles
- Electric patrol cars
- Handling robots
- Automatic forklifts
- Electric two-wheelers
- AGV forklifts
- Outdoor energy storage
- Home energy storage equipment
- Robots

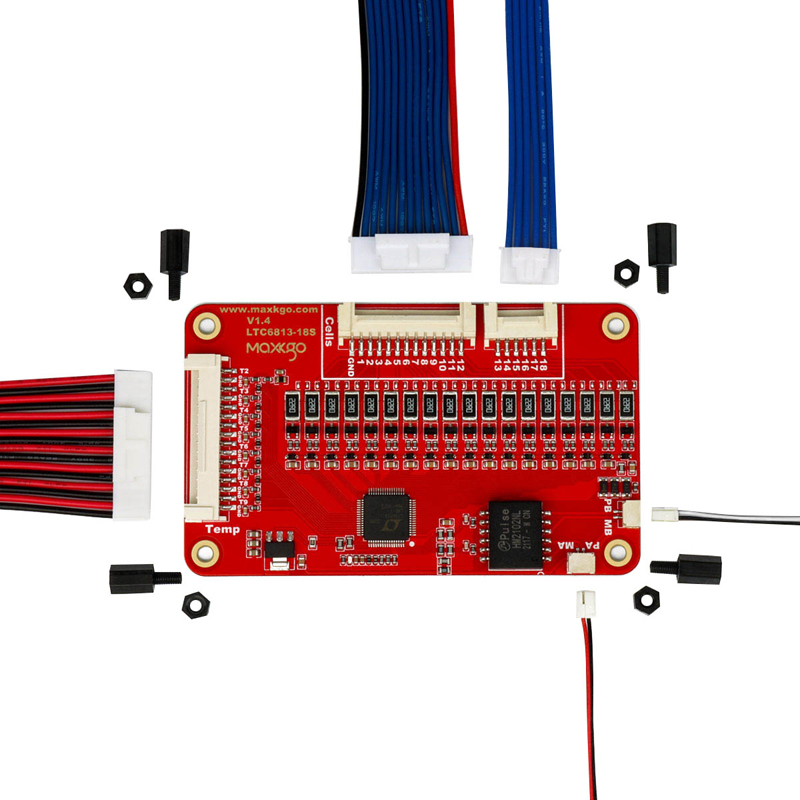

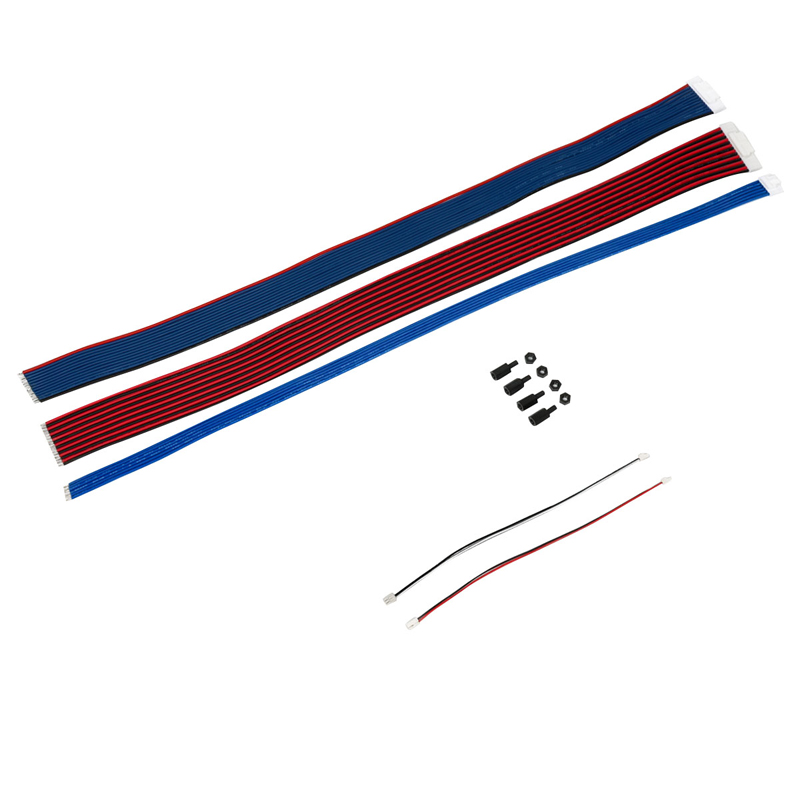

Shipping List
- 1 x LTC6813-18S V1.4 slave board
- 2 x GH1.25 double-head 2P same-direction cables
- 1 x HY2.0 single-head 6P cable
- 1 x HY2.0 single-head 13P cable
- 1 x HY2.0 single-head 16P cable
- 4 x Nylon columns
- 4 x Nylon nuts
Operation Notes
- The first temperature channel is used by the slave board itself.
- For uneven cell count in series, only the last slave board in the daisy-chained loop should have one cell less connected than the other slaves.
Temperature Sensor Note
- The document references 4 or 8 additional temperature sensor interfaces depending on package/source section. Check the selected package before installation.

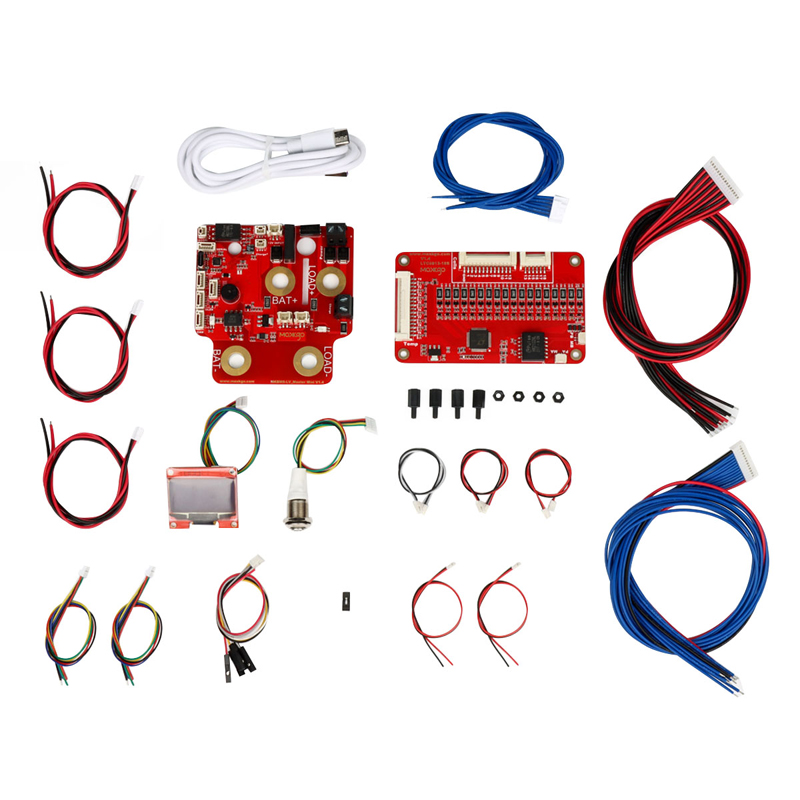

Master and LTC6813 Slave Board Package
- 1X PCBA board MKBMS master board package items as listed in source
- 1X PCBA board LTC6813 slave board
- 2X GH1.25 double-head 2P same-direction cable
- HY2.0 single-head 6P cable
- HY2.0 single-head 13P cable
- HY2.0 single-head 16P cable
- 4X Nylon column
- 4X Nylon nut
